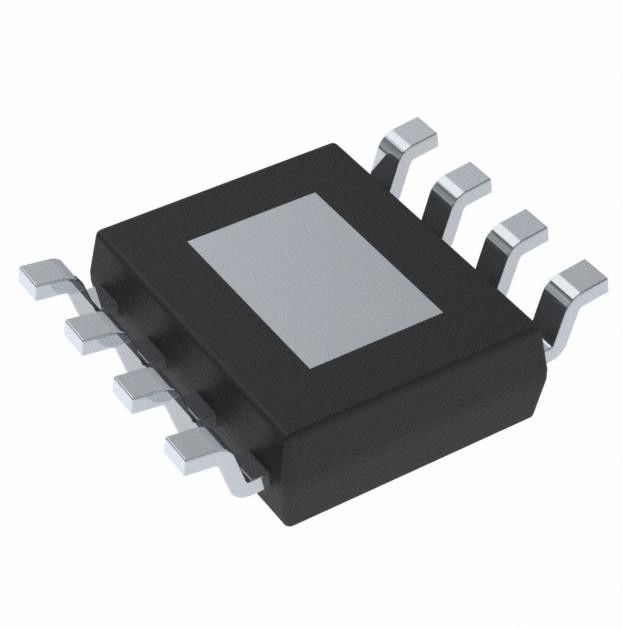

LM25017MRE NOPB Switching Regulator IC 1.225V 1 Output 650mA 8-PowerSOIC
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | LM25017MRE/NOPB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Number Of Outputs: | 1 | Voltage - Input (Min): | 7.5V |
|---|---|---|---|
| Voltage - Input (Max): | 48V | Voltage - Output (Min/Fixed): | 1.225V |
| Voltage - Output (Max): | 40V | Current - Output: | 650mA |
| Frequency - Switching: | Up To 1MHz | Operating Temperature: | -40°C ~ 125°C (TJ) |
| High Light: | LM25017MRE NOPB,1.225V Switching Regulator IC,650mA 8-PowerSOIC Regulator IC |
||
Product Description
LM25017MRE/NOPB Switching Regulator IC 1.225V 1 Output 650mA 8-PowerSOIC
Buck Switching Regulator IC Positive Adjustable 1.225V 1 Output 650mA 8-PowerSOIC (0.154", 3.90mm Width)
Specifications of LM25017MRE/NOPB
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - DC DC Switching Regulators | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 7.5V |
| Voltage - Input (Max) | 48V |
| Voltage - Output (Min/Fixed) | 1.225V |
| Voltage - Output (Max) | 40V |
| Current - Output | 650mA |
| Frequency - Switching | Up to 1MHz |
| Synchronous Rectifier | Yes |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-PowerSOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SO PowerPad |
| Base Product Number | LM25017 |
Features of LM25017MRE/NOPB
• Wide 7.5-V to 48-V input range
• Integrated 650-mA high-side and low-side switches
• No schottky diode required
• Constant on-time control
• No loop compensation required
• Ultra-fast transient response
• Nearly constant operating frequency
• Intelligent peak current limit
• Adjustable output voltage from 1.225 V
• Precision 2% feedback reference
• Frequency adjustable to 1 MHz
• Adjustable undervoltage lockout (UVLO)
• Remote shutdown
• Thermal shutdown
• Create a custom design using the LM25017 with the WEBENCH® power designer
Applications of LM25017MRE/NOPB
• Industrial equipment
• Smart power meters
• Telecommunication systems
• Isolated bias supply (Fly-Buck™)
Environmental & Export Classifications of LM25017MRE/NOPB
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
