20A 22SON Switching Regulator IC Reg Buck Adjustable TPS53353DQPR
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TPS53353DQPR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Number Of Outputs: | 1 | Voltage - Input (Min): | 1.5V |
|---|---|---|---|
| Voltage - Input (Max): | 15V | Voltage - Output (Min/Fixed): | 0.6V |
| Voltage - Output (Max): | 5.5V | Current - Output: | 20A |
| Frequency - Switching: | 250kHz ~ 1MHz | Synchronous Rectifier: | Yes |
| High Light: | 20A 22SON Switching Regulator IC,Buck Adjustable TPS53353DQPR,Switching Regulator IC Reg Buck |
||
Product Description

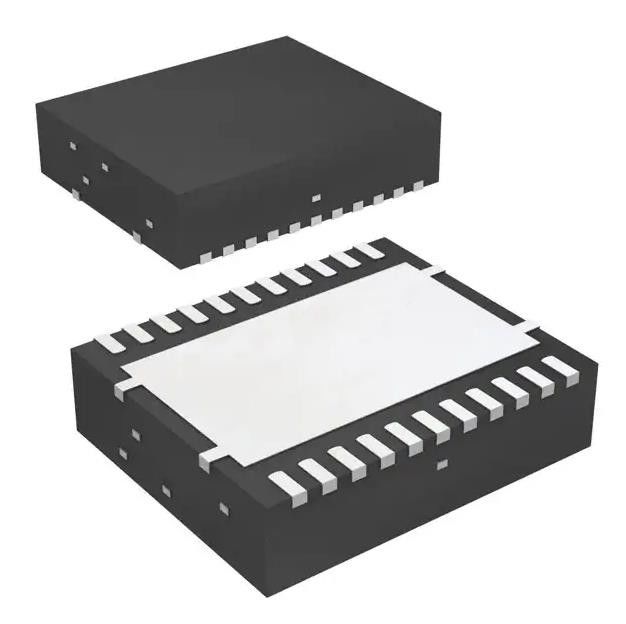

TPS53353DQPR Transistor Ic Chip Ic Reg Buck Adjustable 20a 22son
TPS53353DQPR Switching Regulator IC Reg Buck Adjustable 20a 22son
Buck Switching Regulator IC Positive Adjustable 0.6V 1 Output 20A 22-PowerLFDFN
Specifications of TPS53353DQPR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - DC DC Switching Regulators | |
| Mfr | Texas Instruments |
| Series | D-CAP™, Eco-Mode™ |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 1.5V |
| Voltage - Input (Max) | 15V |
| Voltage - Output (Min/Fixed) | 0.6V |
| Voltage - Output (Max) | 5.5V |
| Current - Output | 20A |
| Frequency - Switching | 250kHz ~ 1MHz |
| Synchronous Rectifier | Yes |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 22-PowerLFDFN |
| Supplier Device Package | 22-LSON-CLIP (6x5) |
| Base Product Number | TPS53353 |
Features of TPS53353DQPR
• New product available:
TPS548B28 16-V, 20-A synchronous-buck converter with remote sense
• Conversion input voltage range: 1.5 V to 15 V
• VDD input voltage range: 4.5 V to 25 V
• 92% efficiency from 12 V to1.5 V at 20 A
• Output voltage range: 0.6 Vto 5.5 V
• 5-V LDO output
• Supports single-rail input
• Integrated power MOSFETs with 20 A of continuous output current
• Auto-skip Eco-mode™ for light-load efficiency
• < 10-μA shutdown current
• D-CAP™ mode with fast transient response
• Selectable switching frequency from 250 kHz to 1 MHz with external resistor
• Selectable auto-skip or PWM
-only operation
• Built-in 1% 0.6-V reference
• 0.7-ms, 1.4-ms, 2.8-ms, and5.6-ms selectable internal voltage servo soft start
• Integrated boost switch
• Precharged start-up capability
• Adjustable overcurrent limit with thermal compensation
• Overvoltage, undervoltage, UVLO, and overtemperature protection
• Supports all ceramic outputcapacitors
• Open-drain power-good indication
• Incorporates NexFET™ power block technology
• 22-pin QFN package with PowerPAD™
• For SWIFT™ power products documentation, see
Applications of TPS53353DQPR
• Enterprise rack Servers and storage
• Wired networking switches and routers
• ASIC, SoC, FPGA, DSP core, and I/O voltage
Environmental & Export Classifications of TPS53353DQPR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| REACH Status | REACH Affected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
