SUM110P04-05-E3 General Purpose Relays P-Channel 40 V 110A 15W 375W
Product Details:
| Place of Origin: | Original |
| Brand Name: | Original |
| Certification: | Original |
| Model Number: | SUM110P04-05-E3 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Part Number: | SUM110P04-05-E3 | Drain To Source Voltage (Vdss): | 40 V |
|---|---|---|---|
| Current - Continuous Drain (Id) @ 25°C: | 110A (Tc) | Rds On (Max) @ Id, Vgs: | 5mOhm @ 20A, 10V |
| Vgs (Max): | ±20V | Power Dissipation (Max): | 15W (Ta), 375W (Tc) |
| Operating Temperature: | -55°C ~ 175°C (TJ) | FET Type: | P-Channel |
Product Description
SUM110P04-05-E3 General Purpose Relays P-Channel 40 V 110A 15W 375W

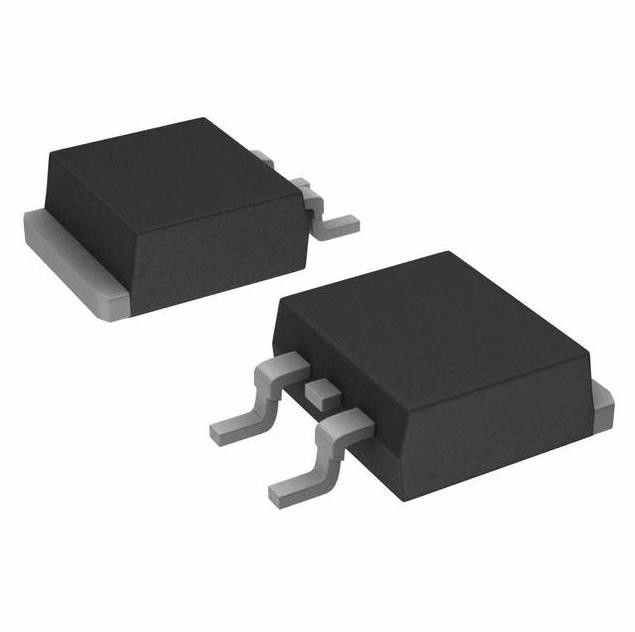

P-Channel 40 V 110A (Tc) 15W (Ta), 375W (Tc) Surface Mount TO-263 (D²Pak)
Features of SUM110P04-05-E3
• TrenchFET® Power MOSFET
Specifications of SUM110P04-05-E3
|
Product
|
SUM110P04-05-E3
|
|
FET Type
|
P-Channel
|
| Package | Tape & Reel |
|
Technology
|
MOSFET (Metal Oxide)
|
|
Drain to Source Voltage (Vdss)
|
40 V
|
|
Current - Continuous Drain (Id) @ 25°C
|
110A (Tc)
|
|
Drive Voltage (Max Rds On, Min Rds On)
|
10V
|
|
Rds On (Max) @ Id, Vgs
|
5mOhm @ 20A, 10V
|
|
Vgs(th) (Max) @ Id
|
4V @ 250µA
|
|
Gate Charge (Qg) (Max) @ Vgs
|
280 nC @ 10 V
|
|
Vgs (Max)
|
±20V
|
|
Input Capacitance (Ciss) (Max) @ Vds
|
11300 pF @ 25 V
|
|
FET Feature
|
-
|
|
Power Dissipation (Max)
|
15W (Ta), 375W (Tc)
|
|
Operating Temperature
|
-55°C ~ 175°C (TJ)
|
|
Mounting Type
|
Surface Mount
|
|
Supplier Device Package
|
TO-263 (D²Pak)
|
|
Package / Case
|
TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
|
|
Base Product Number
|
SUM110
|
Applications of SUM110P04-05-E3
Switching Mode Power Supply
Environmental & Export Classifications
| ATTRIBUTE | DESCRIPTION |
|---|---|
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.29.0095 |
