RJK0651DPB-00 # J5 General Purpose Relays N-Channel 60 V 25A (Ta) 45W
Product Details:
| Place of Origin: | Original |
| Brand Name: | Original |
| Certification: | Original |
| Model Number: | RJK0651DPB-00#J5 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Part Number: | RJK0651DPB-00#J5 | Drain To Source Voltage (Vdss): | 60 V |
|---|---|---|---|
| Current - Continuous Drain (Id) @ 25°C: | 25A (Ta) | Rds On (Max) @ Id, Vgs: | 14mOhm @ 12.5A, 10V |
| Vgs (Max): | ±20V | Power Dissipation (Max): | 45W (Tc) |
| Operating Temperature: | 150°C (TJ) | FET Type: | N-Channel |
Product Description
RJK0651DPB-00 # J5 General Purpose Relays N-Channel 60 V 25A (Ta) 45W

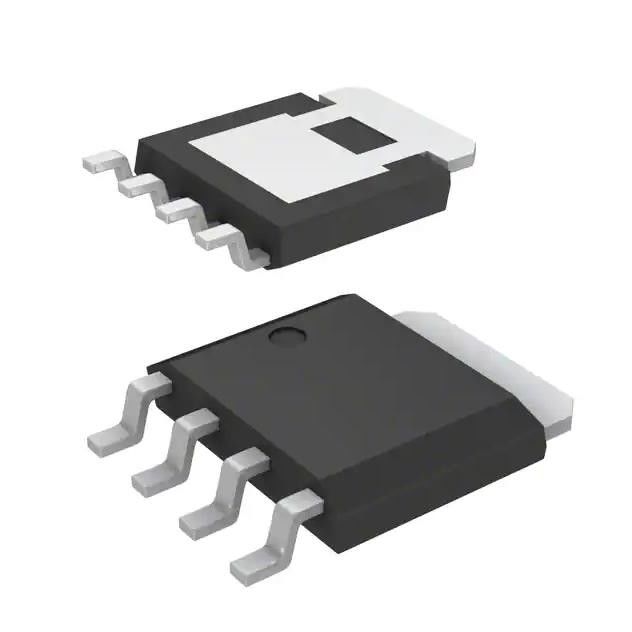

N-Channel 60 V 25A (Ta) 45W (Tc) Surface Mount LFPAK
Features of RJK0651DPB-00#J5
High speed switching
Capable of 4.5 V gate drive
Low drive current
High density mounting
Low on-resistance
RDS(on) = 11 m typ. (at VGS = 10 V)
Pb-free
Halogen-free
Specifications of RJK0651DPB-00#J5
|
Product
|
RJK0651DPB-00#J5
|
|
FET Type
|
N-Channel
|
|
Technology
|
MOSFET (Metal Oxide)
|
|
Drain to Source Voltage (Vdss)
|
60 V
|
|
Current - Continuous Drain (Id) @ 25°C
|
25A (Ta)
|
|
Drive Voltage (Max Rds On, Min Rds On)
|
4.5V, 10V
|
|
Rds On (Max) @ Id, Vgs
|
14mOhm @ 12.5A, 10V
|
|
Vgs(th) (Max) @ Id
|
-
|
|
Gate Charge (Qg) (Max) @ Vgs
|
15 nC @ 4.5 V
|
|
Vgs (Max)
|
±20V
|
|
Input Capacitance (Ciss) (Max) @ Vds
|
2030 pF @ 10 V
|
|
FET Feature
|
-
|
|
Power Dissipation (Max)
|
45W (Tc)
|
|
Operating Temperature
|
150°C (TJ)
|
|
Mounting Type
|
Surface Mount
|
|
Supplier Device Package
|
LFPAK
|
|
Package / Case
|
SC-100, SOT-669
|
|
Base Product Number
|
RJK0651
|
Applications of RJK0651DPB-00#J5
Switching Mode Power Supply
Environmental & Export Classifications
| ATTRIBUTE | DESCRIPTION |
|---|---|
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.29.0095 |
