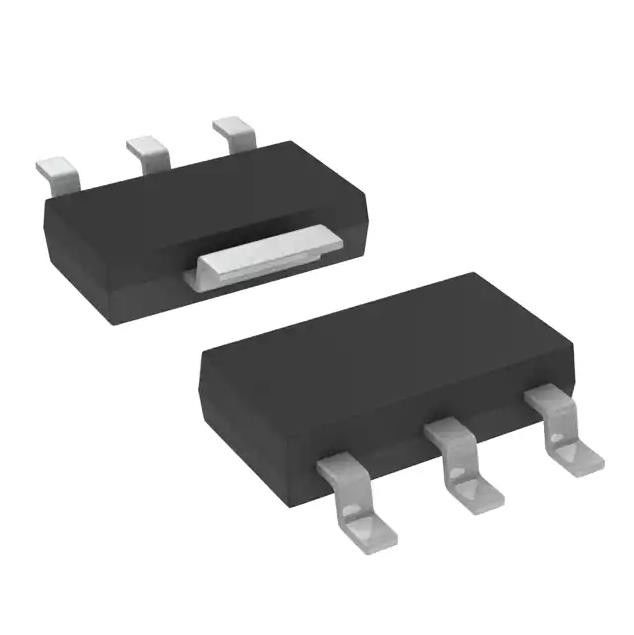

PZT2907AT1G PNP 60 V 600 mA 200MHz 1.5 W SOT-223 General Purpose Relays
Product Details:
| Place of Origin: | Original |
| Brand Name: | Original |
| Certification: | Original |
| Model Number: | PZT2907AT1G |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Part Number: | PZT2907AT1G | Current - Collector (Ic) (Max): | 600 MA |
|---|---|---|---|
| Voltage - Collector Emitter Breakdown (Max): | 30 V | Vce Saturation (Max) @ Ib, Ic: | 1.6V @ 50mA, 500mA |
| Current - Collector Cutoff (Max): | 10nA (ICBO) | Power - Max: | 1.5 W |
| Frequency - Transition: | 200MHz | Operating Temperature: | -65°C ~ 150°C (TJ) |
Product Description
PZT2907AT1G PNP 60 V 600 mA 200MHz 1.5 W SOT-223 General Purpose Relays
This PNP Silicon Epitaxial transistor is designed for use in linear and switching applications. The device is housed in the SOT-223
package which is designed for medium power surface mount applications.
Features of PZT2907AT1G
• NPN Complement is PZT2222AT1
• The SOT-223 Package can be Soldered Using Wave or Reflow
• SOT-223 Package Ensures Level Mounting, Resulting in Improved
Thermal Conduction, and Allows Visual Inspection of Soldered
Joints. The Formed Leads Absorb Thermal Stress during Soldering
Eliminating the Possibility of Damage to the Die
• S Prefix for Automotive and Other Applications Requiring Unique
Site and Control Change Requirements; AEC−Q101 Qualified and
PPAP Capable
• These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS
Compliant*
Specifications of PZT2907AT1G
|
Product
|
PZT2907AT1G
|
|
Transistor Type
|
PNP
|
|
Current - Collector (Ic) (Max)
|
600 mA
|
|
Voltage - Collector Emitter Breakdown (Max)
|
60 V
|
|
Vce Saturation (Max) @ Ib, Ic
|
1.6V @ 50mA, 500mA
|
|
Current - Collector Cutoff (Max)
|
10nA (ICBO)
|
|
DC Current Gain (hFE) (Min) @ Ic, Vce
|
100 @ 150mA, 10V
|
|
Power - Max
|
1.5 W
|
|
Frequency - Transition
|
200MHz
|
|
Operating Temperature
|
-65°C ~ 150°C (TJ)
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
TO-261-4, TO-261AA
|
|
Supplier Device Package
|
SOT-223 (TO-261)
|
|
Base Product Number
|
PZT2907
|
Applications of PZT2907AT1G
• Switching and linear amplification
Environmental & Export Classifications
| ATTRIBUTE | DESCRIPTION |
|---|---|
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.29.0075 |
