PMBT2222A 215 General Purpose Relays 30 V 600 mA 300MHz 250 mW TO-236AB
Product Details:
| Place of Origin: | Original |
| Brand Name: | Original |
| Certification: | Original |
| Model Number: | PMBT2222A,215 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Part Number: | PMBT2222A,215 | Current - Collector (Ic) (Max): | 600 MA |
|---|---|---|---|
| Voltage - Collector Emitter Breakdown (Max): | 30 V | Vce Saturation (Max) @ Ib, Ic: | 1V @ 50mA, 500mA |
| Power - Max: | 250 MW | Frequency - Transition: | 300MHz |
| Operating Temperature: | 150°C (TJ) | Transistor Type: | NPN |
Product Description
PMBT2222A 215 General Purpose Relays 30 V 600 mA 300MHz 250 mW TO-236AB

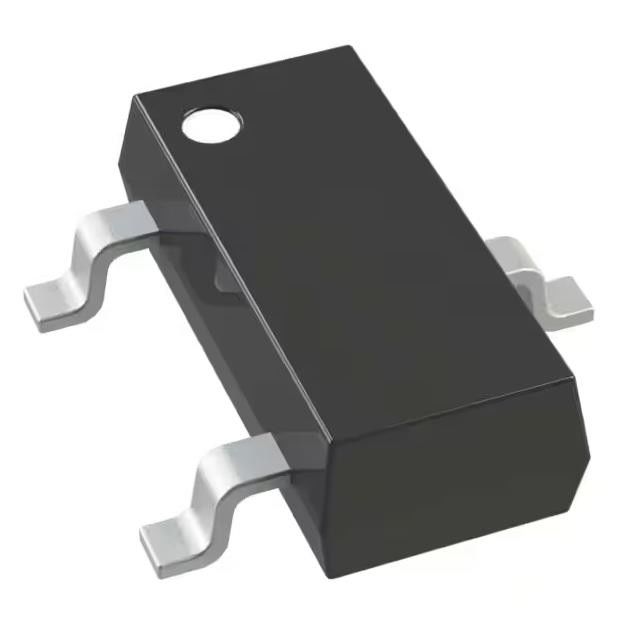

NPN switching transistor in a small SOT23 (TO-236AB) Surface-Mounted Device (SMD) plastic
package.
Features of PMBT2222A,215
• High current (max. 600 mA)
• Low voltage (max. 40 V)
• AEC-Q101 qualified
Specifications of PMBT2222A,215
|
Series
|
Automotive, AEC-Q101
|
|
Product
|
PMBT2222A,215
|
| Package | Tape & Reel (TR) |
|
Transistor Type
|
NPN
|
|
Current - Collector (Ic) (Max)
|
600 mA
|
|
Voltage - Collector Emitter Breakdown (Max)
|
30 V
|
|
Vce Saturation (Max) @ Ib, Ic
|
1V @ 50mA, 500mA
|
|
Current - Collector Cutoff (Max)
|
10nA (ICBO)
|
|
DC Current Gain (hFE) (Min) @ Ic, Vce
|
100 @ 150mA, 10V
|
|
Power - Max
|
250 mW
|
|
Frequency - Transition
|
300MHz
|
|
Operating Temperature
|
150°C (TJ)
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
TO-236-3, SC-59, SOT-23-3
|
|
Supplier Device Package
|
TO-236AB
|
|
Base Product Number
|
PMBT2222
|
Applications of PMBT2222A,215
• Switching and linear amplification
Environmental & Export Classifications
| ATTRIBUTE | DESCRIPTION |
|---|---|
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.21.0075 |
