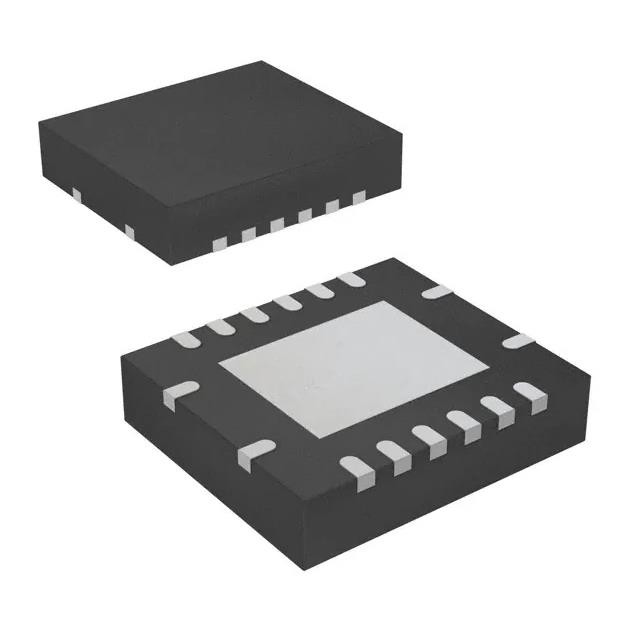

SN74LV165ARGYR Integrated Circuit Chip 1 Element 8 Bit 16-VQFN
Product Details:
| Place of Origin: | Original |
| Brand Name: | Original |
| Certification: | Original |
| Model Number: | SN74LV165ARGYR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Part No: | SN74LV165ARGYR | Number Of Outputs: | 1 |
|---|---|---|---|
| Number Of Bits Per Element: | 8 | Voltage - Input (Max): | 36V |
| Voltage - Supply: | 2V ~ 5.5V | Current - Output (Max): | 1.5A |
| Series: | 74LV | Operating Temperature: | -40°C ~ 125°C |
Product Description
SN74LV165ARGYR Integrated Circuit Chip 1 Element 8 Bit 16-VQFN
IC SHFT REG PARAL LD 8BIT 16VQFN Shift Shift Register 1 Element 8 Bit 16-VQFN (4x3.5)
This device is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables
the outputs, preventing damaging current backflow through the devices when they are powered down.
Features of SN74LV165ARGYR
VCC operation of 2 V to 5.5 V
• Maximum tpd of 10.5 ns at 5 V
• Support mixed-mode voltage operation on
all ports
• Ioff supports partial-power-down mode
operation
• Latch-up performance exceeds 250 mA per
JESD 17
Specifications of SN74LV165ARGYR
|
Mfr
|
Texas Instruments
|
|
Series
|
74LV
|
|
Product
|
SN74LV165ARGYR
|
|
Logic Type
|
Shift Register
|
|
Output Type
|
Complementary
|
|
Number of Elements
|
1
|
|
Number of Bits per Element
|
8
|
|
Function
|
Parallel or Serial to Serial
|
|
Voltage - Supply
|
2V ~ 5.5V
|
|
Operating Temperature
|
-40°C ~ 125°C
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
16-VFQFN Exposed Pad
|
|
Supplier Device Package
|
16-VQFN (4x3.5)
|
|
Base Product Number
|
74LV165
|
range (−10 ̊
Environmental & Export Classifications
wh avck-
| ATTRIBUTE | DESCRIPTION |
|---|---|
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
APPLICATIONS of SN74LV165ARGYR
Increase the Number of Inputs on a Microcontroller
