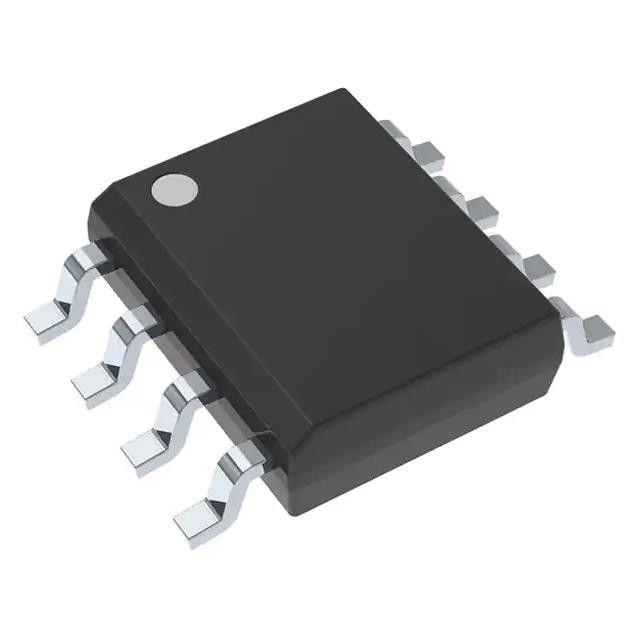

SN65MLVD200DR Integrated Circuit Chip 1/1 Transceiver Half LVDS 8-SOIC

Product Description

 SN65MLVD200DR Integrated Circuit Chip 1/1 Transceiver Half LVDS 8-SOIC

1/1 Transceiver Half LVDS, Multipoint 8-SOIC

Features of SN65MLVD200ADRG4

Low-Voltage Differential 30-Ω Line Drivers
and Receivers for Signaling Rates† up to
100 Mbps

Power Dissipation at 100 Mbps
– Driver: 50 mW Typical
– Receiver: 30 mW Typical

Meets or Exceeds Current Revision of
M-LVDS Standard TIA/EIA–899 for
Multipoint Data Interchange

Controlled Driver Output Voltage Transition
Times for Improved Signal Quality

–1-V to 3.4-V Common-Mode Voltage Range
Allows Data Transfer With up to 2 V of
Ground Noise

Type-1 Receivers Incorporate 25 mV of
Hysteresis
Type-2 Receivers Provide an Offset
(100 mV) Threshold to Detect Open-Circuit
and Idle-Bus Conditions

Operates From a Single 3.3-V Supply

Propagation Delay Times Typically 2.3 ns
for Drivers and 5 ns for Receivers

Power-Up/Down Glitch-Free Driver

Driver Handles Operation Into a
Continuous Short Circuit Without Damage

Bus Pins High Impedance When Disabled
or VCC ≤ 1.5 V

200-Mbps Devices Available
(SN65MLVD201, 203, 206, and 207)

Specifications of SN65MLVD200ADRG4

range (−10 ̊

Environmental & Export Classifications

wh avck-

Applications of SN65MLVD200ADRG4

· Low-Power,High-Speed, Short-Reach Altemative to TIA/EIA-485

· Backplane or Cabled Multipoint Data and Clock
