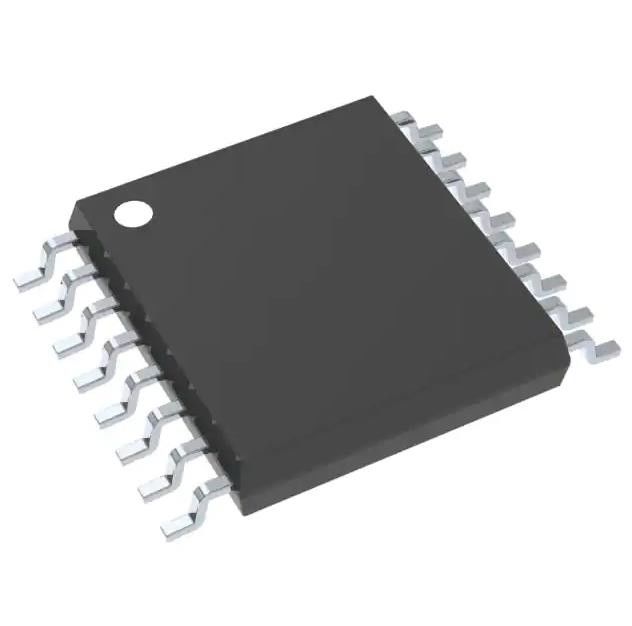

SN65LVDS32PWRG4 Integrated Circuit Chip 0/4 16TSSOP Receiver LVDS
Product Details:
| Place of Origin: | Original |
| Brand Name: | Original |
| Certification: | Original |
| Model Number: | SN65LVDS32PWRG4 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Part No: | SN65LVDS32PWRG4 | Type: | Receiver |
|---|---|---|---|
| Protocol: | LVDS | Number Of Drivers/Receivers: | 0/4 |
| Receiver Hysteresis: | 50 MV | Data Rate: | 400Mbps |
| Voltage - Supply: | 3V ~ 3.6V | Operating Temperature: | -40°C ~ 85°C |
Product Description
SN65LVDS32PWRG4 Integrated Circuit Chip 0/4 16TSSOP Receiver LVDS
0/4 Receiver LVDS 16-TSSOP
the electrical characteristics of low-voltage differential signaling (LVDS). LVDS is defined in the
TIA/EIA-644 standard. This improved performance represents the second generation of receiver
products for this standard, providing a better overall solution for the cabled environment. This generation
of products is an extension to TI's overall product portfolio and is not necessarily a replacement for older LVDS receivers.
Features of SN65LVDS32PWRG4
Meets or Exceeds the Requirements of ANSI
EIA/TIA-644 Standard for Signaling Rates (1) up
to 400 Mbps
• Operates With a Single 3.3-V Supply
• –2-V to 4.4-V Common-Mode Input Voltage
Range
• Differential Input Thresholds <50 mV With
50 mV of Hysteresis Over Entire CommonMode Input Voltage Range
• Integrated 110-Ω Line Termination Resistors
Offered With the LVDT Series
• Propagation Delay Times 4 ns (typ)
• Active Fail Safe Assures a High-Level Output
With No Input
• Bus-Pin ESD Protection Exceeds 15 kV HBM
• Inputs Remain High-Impedance on Power
Down
• Recommended Maximum Parallel Rate of
200 M-Transfer/s
• Available in Small-Outline Package With
1,27-mm Terminal Pitch
• Pin-Compatible With the AM26LS32, MC3486,
or µA9637
Specifications of SN65LVDS32PWRG4
|
Product
|
SN65LVDS32PWR
|
|
Type
|
Receiver
|
| Package | Tape & Reel |
|
Protocol
|
LVDS
|
|
Number of Drivers/Receivers
|
0/4
|
|
Receiver Hysteresis
|
50 mV
|
|
Data Rate
|
400Mbps
|
|
Voltage - Supply
|
3V ~ 3.6V
|
|
Operating Temperature
|
-40°C ~ 85°C
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
16-TSSOP (0.173", 4.40mm Width)
|
|
Supplier Device Package
|
16-TSSOP
|
|
Base Product Number
|
65LVDS32
|
range (−10 ̊
Environmental & Export Classifications
wh avck-
| ATTRIBUTE | DESCRIPTION |
|---|---|
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
Applications of SN65LVDS32PWRG4
• Wireless Infrastructure
• Telecom Infrastructure
• Printer
