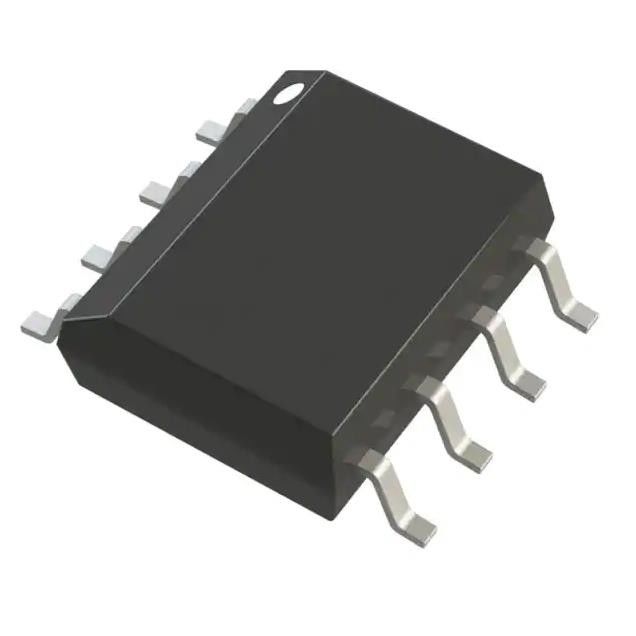

REF192ESZ-REEL Series Voltage Reference IC Fixed 2.5V V ±0.08% 30 mA 8-SOIC
Product Details:
| Place of Origin: | Original |
| Brand Name: | Original |
| Certification: | Original |
| Model Number: | REF192ESZ-REEL |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Part No: | REF192ESZ-REEL | Voltage - Output (Min/Fixed): | 2.5V |
|---|---|---|---|
| Current - Output: | 30 MA | Tolerance: | ±0.08% |
| Temperature Coefficient: | 5ppm/°C | Voltage - Input: | 3V ~ 15V |
| Current - Supply: | 45µA | Operating Temperature: | -40°C ~ 85°C (TA) |
Product Description
REF192ESZ-REEL Series Voltage Reference IC Fixed 2.5V V ±0.08% 30 mA 8-SOIC
Non-Isolated PoL Module DC DC Converter 1 Output 2.5 ~ 12.6V 1.5A 7V - 36V Input
The REF19x series precision band gap voltage references use a patented temperature drift curvature correction circuit and
laser trimming of highly stable, thin-film resistors to achieve a very low temperature coefficient and high initial accuracy.
Features of REF192ESZ-REEL
Temperature coefficient: 5 ppm/°C maximum
High output current: 30 mA
Low supply current: 45 μA maximum
Initial accuracy: ±2 mV maximum1
Sleep mode: 15 μA maximum
Low dropout voltage
Load regulation: 4 ppm/mA
Line regulation: 4 ppm/V
Short-circuit protection
Specifications of REF192ESZ-REEL
|
Product
|
REF192ESZ-REEL
|
|
Reference Type
|
Series
|
|
Output Type
|
Fixed
|
|
Voltage - Output (Min/Fixed)
|
2.5V
|
|
Current - Output
|
30 mA
|
|
Tolerance
|
±0.08%
|
|
Temperature Coefficient
|
5ppm/°C
|
|
Noise - 0.1Hz to 10Hz
|
25µVp-p
|
|
Noise - 10Hz to 10kHz
|
-
|
|
Voltage - Input
|
3V ~ 15V
|
|
Current - Supply
|
45µA
|
|
Operating Temperature
|
-40°C ~ 85°C (TA)
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
8-SOIC (0.154", 3.90mm Width)
|
|
Supplier Device Package
|
8-SOIC
|
|
Base Product Number
|
REF192
|
range (−10 ̊
Environmental & Export Classifications
wh avck-
| ATTRIBUTE | DESCRIPTION |
|---|---|
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
APPLICATIONS of REF192ESZ-REEL
Portable instruments
ADCs and DACs
Smart sensors
Solar powered applications
Loop-current-powered instruments
