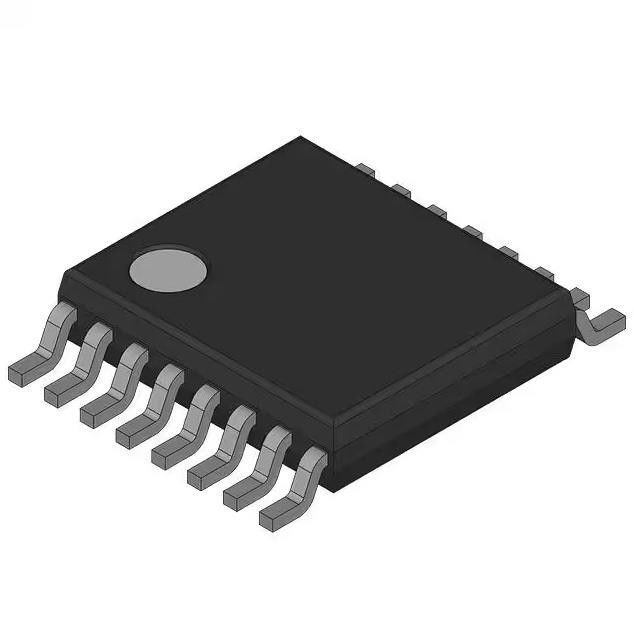

LM43600AQPWPTQ1 Switching Regulator IC Output 4.1 Ms Integrated Circuit Chip
Product Details:
| Place of Origin: | Original |
| Brand Name: | Original |
| Certification: | Original |
| Model Number: | LM43600AQPWPTQ1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Part No: | LM43600AQPWPTQ1 | Device Temperature Grade 1: | –40°C To +125°C |
|---|---|---|---|
| Adjustable Frequency Range: | 200 KHz To 2.2 MHz | Internal Soft Start: | 4.1 Ms |
| Input Voltage: | 3.5 V To 36 V | LM43600A-Q1: | 6.60 Mm × 5.10 Mm |
| High Light: | LM43600AQPWPTQ1 Switching Regulator IC,LM43600AQPWPTQ1 Integrated Circuit Chip,4.1 Ms Integrated Circuit Chip |
||
Product Description
LM43600AQPWPTQ1 Integrated Circuit Chip Switching Regulator IC Output 4.1 ms
LM43600AQPWPTQ1 Integrated Circuit Chip Switching Regulator IC Output
Switching Regulator IC Output LM43600-Q1 - AUTOMOTIVE QUALIFIE
Features of LM43600AQPWPTQ1
1• Qualified for Automotive Applications
• AEC-Q100 Qualified With the Following Results:
– Device Temperature Grade 1: –40°C to
+125°C Ambient Operating Temperature
• 33-µA Quiescent Current in Regulation
• High Efficiency at Light Load (DCM and PFM)
• Tested to EN55022/CISPR 22 EMI standards
• Integrated Synchronous Rectification
• Adjustable Frequency Range: 200 kHz to 2.2 MHz
(500 kHz Default)
• Frequency Synchronization to External Clock
• Internal Compensation
• Stable with Almost Any Combination of Ceramic,
Polymer, Tantalum, and Aluminum Capacitors
• Power-Good Flag
• Soft Start into Pre-Biased Load
• Internal Soft Start: 4.1 ms
• Extendable Soft-Start Time by External Capacitor
• Output Voltage Tracking Capability
Specifications of LM43600AQPWPTQ1
|
Product
|
LM43600AQPWPRQ1
|
|
Function
|
Step-Down
|
|
Output Configuration
|
Positive
|
|
Topology
|
Buck
|
|
Output Type
|
Adjustable
|
|
Number of Outputs
|
1
|
|
Voltage - Input (Min)
|
3.5V
|
|
Voltage - Input (Max)
|
36V
|
|
Voltage - Output (Min/Fixed)
|
1V
|
|
Voltage - Output (Max)
|
28V
|
|
Current - Output
|
500mA
|
|
Frequency - Switching
|
200kHz ~ 2.2MHz
|
|
Synchronous Rectifier
|
Yes
|
|
Operating Temperature
|
-40°C ~ 125°C (TJ)
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
16-PowerTSSOP (0.173", 4.40mm Width)
|
|
Supplier Device Package
|
16-HTSSOP
|
|
Base Product Number
|
LM43600
|
range (−10 ̊
Environmental & Export Classifications
with avck-
| ATTRIBUTE | DESCRIPTION |
|---|---|
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
APPLICATIONS of LM43600AQPWPTQ1
Sub-AM Band Automotive
• Telecommunications Systems
• General Purpose Wide VIN Regulation
• High Efficiency Point-Of-Load Regulation
