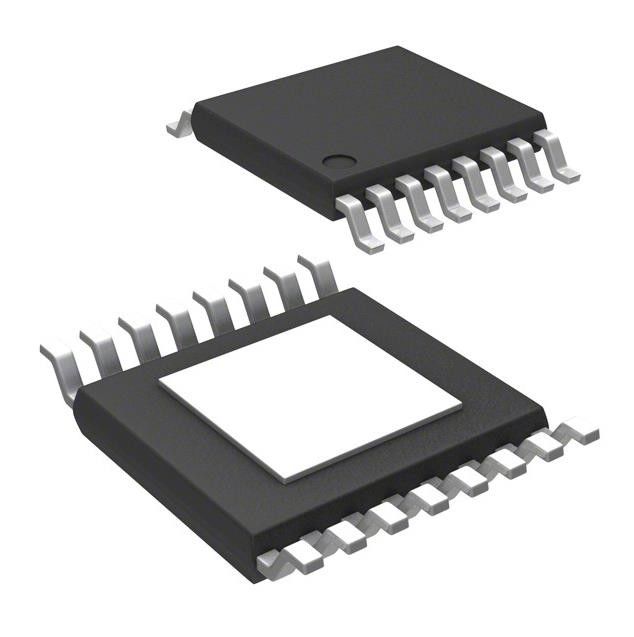

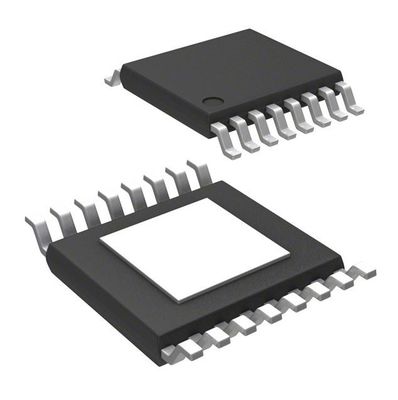

LM46001PWPR Buck Switching Regulator IC Positive Adjustable 1V 1 Output
Product Details:
| Place of Origin: | Original |
| Brand Name: | Original |
| Certification: | Original |
| Model Number: | LM46001PWPR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Voltage - Input (Min): | 3.5V | Voltage - Input (Max): | 60V |
|---|---|---|---|
| Operating Temperature: | -40°C ~ 125°C | Frequency - Switching: | 200kHz ~ 2.2MHz |
| Synchronous Rectifier: | Yes | Package / Case: | 16-PowerTSSOP (0.173", 4.40mm Width) |
| Supplier Device Package: | 16-HTSSOP | Voltage - Output (Max): | 28V |
| High Light: | 1V Buck Switching Regulator IC,LM46001PWPR Switching Regulator IC,1V 1 Output LM46001PWPR |
||
Product Description
LM46001PWPR Switching Regulator IC Positive Adjustable 1V 1 Output
IC REG BUCK ADJ 1A 16HTSSOP
Features of LM46001PWPR
1• 24-µA Quiescent Current in Regulation
• High Efficiency at Light Load (DCM and PFM)
• Meets EN55022/CISPR 22 EMI standards
• Integrated Synchronous Rectification
• Adjustable Switching Frequency: 200 kHz to
2.2 MHz (500 kHz default)
• Frequency Synchronization to External Clock
• Internal Compensation
• Stable With Many Combinations of Ceramic,
Polymer, Tantalum, and Aluminum Capacitors
• Power-Good Flag
• Soft Start into Pre-Biased Load
• Internal Soft Start: 4.1 ms
• Extendable Soft-Start Time by External Capacitor
• Output Voltage Tracking Capability
• Precision Enable to Program System UVLO
• Output Short-Circuit Protection With Hiccup Mode
• Overtemperature Thermal Shutdown Protection
• Create a Custom Design Using the LM46001 With
the WEBENCH® Power Designer
Product Attributes of LM46001PWPR
|
TYPE
|
DESCRIPTION
|
|---|---|
|
Category
|
Integrated Circuits (ICs)
Power Management (PMIC)
Voltage Regulators - DC DC Switching Regulators
|
|
Mfr
|
T I
|
|
Series
|
SIMPLE SWITCHER®
|
|
Product Status
|
Active
|
|
Function
|
Step-Down
|
|
Output Configuration
|
Positive
|
|
Topology
|
Buck
|
|
Output Type
|
Adjustable
|
|
Number of Outputs
|
1
|
|
Voltage - Input (Min)
|
3.5V
|
|
Voltage - Input (Max)
|
60V
|
|
Voltage - Output (Min/Fixed)
|
1V
|
|
Voltage - Output (Max)
|
28V
|
|
Current - Output
|
1A
|
|
Frequency - Switching
|
200kHz ~ 2.2MHz
|
|
Synchronous Rectifier
|
Yes
|
|
Operating Temperature
|
-40°C ~ 125°C (TJ)
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
16-PowerTSSOP (0.173", 4.40mm Width)
|
|
Supplier Device Package
|
16-HTSSOP
|
|
Base Product Number
|
LM46001
|
| ATTRIBUTE | DESCRIPTION |
|---|---|
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
Description of LM46001PWPR
The LM46001 regulator is an easy-to-use synchronous step-down DC-DC converter capable of driving up to 1 A of load current from an input voltage ranging from 3.5 V to 60 V. The LM46001 provides exceptional efficiency, output accuracy, and dropout voltage in a very small solution size. An extended family is available in 0.5-A and 2-A load current options in pin-to-pin compatible packages. Peakcurrent-mode control is employed to achieve simple control loop compensation and cycle-by-cycle current limiting. Optional features such as programmable switching frequency, synchronization, power-good flag, precision enable, internal soft start, extendable soft start, and tracking provide a flexible and easy-touse platform for a wide range of applications. Discontinuous conduction and automatic frequency reduction at light loads improve light-load efficiency. The family requires few external components and pin arrangement allows simple, optimum PCB layout.
Protection features include thermal shutdown, VCC undervoltage lockout, cycle-by-cycle current limit, and output short-circuit protection. The LM46001 device is available in the 16-lead HTSSOP package (PWP, 6.6 mm × 5.1 mm × 1.2 mm) with 0.65-mm lead pitch. The device is pin-to-pin compatible with LM46000, LM46002, LM43603, LM43602, LM43601, and LM43600
