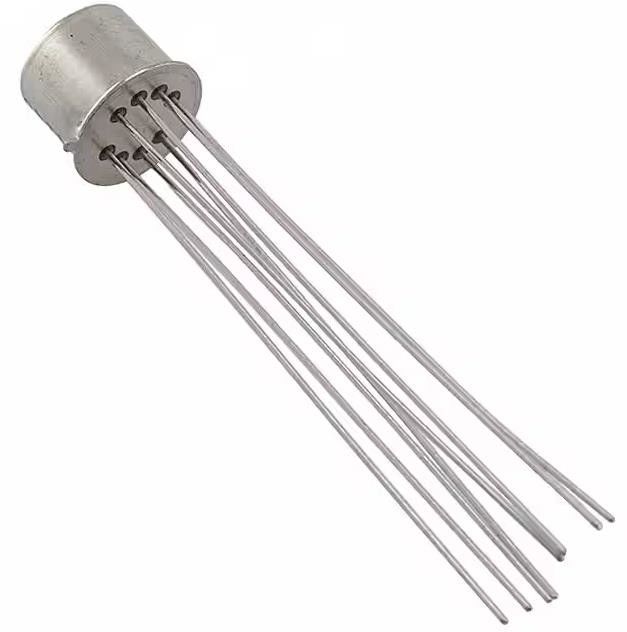

JMAW-26XL General Purpose Relay DPDT (2 Form C) Through Hole



RELAY GEN PURPOS DPDT 1A 26.5VDC



Product Type Features of JMAW-26XL



Enclosure Type Hermetically Sealed
Relay Type Military/Aerospace High Performance
Coil Latching Without
Product Type Relay
MOSFET Driver Without



Electrical Characteristics of JMAW-26XL



Coil Magnetic System Non-Polarized, Monostable

Vibration 30G's, 10 – 3000Hz

Actuating System DC

Shock 75G's, 6ms

Coil Power Measurement Milliwatts

TO-5/.100 Grid Relay Input Voltage 26.5 VDC

Coil Suppression Diode Without

Coil Voltage 26.5 VDC

TO-5/.100 Grid Relay Coil Resistance 1560 Ω

TO-5/.100 Grid Relay Coil Power Rating (DC) 450 mW

Coil Polarity Protection Diode Without

TO-5/.100 Grid Relay Contact Switching Voltage (Max) 28



Contact Features of JMAW-26XL



Contact Current Class Low Level – 1 A

TO-5/.100 Grid Relay Contact Arrangement 2 Form C, DPDT, 2 C/O

TO-5/.100 Grid Relay Contact Current Rating 1 A



Termination Features of JMAW-26XL



Termination Type Long Leads



Specifications of JMAW-26XL



TYPE DESCRIPTION
Category Relays
Signal Relays, Up to 2 Amps
Mfr TE Connectivity Aerospace, Defense and Marine
Series Military, MIL-R-39016/9, MA, CII
Package Bulk
Product Status Active
Mounting Type Through Hole
Coil Voltage 26.5VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 1 A
Switching Voltage 115VAC, 28VDC - Max
Coil Type Non Latching
Features -
Termination Style PC Pin
Seal Rating Sealed - Hermetically
Coil Insulation -
Must Operate Voltage 14.2 VDC
Must Release Voltage 1.37 VDC
Operate Time 2 ms
Release Time 1.5 ms
Operating Temperature -65°C ~ 125°C
Contact Material Silver Palladium (AgPd), Gold (Au)
Relay Type General Purpose
Coil Resistance 1560 Ohms
Base Product Number JMAW-26
