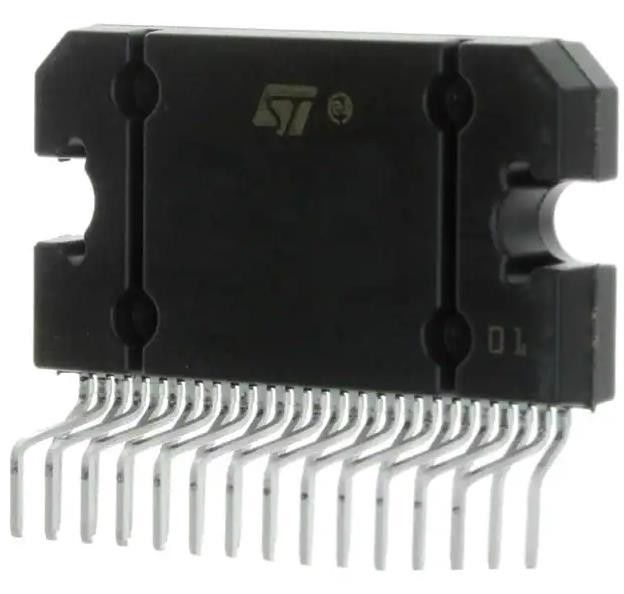

TDA7562B Amplifier IC 4-Channel (Quad) Class AB 27-Flexiwatt (Vertical)
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TDA7562B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Features: | I²C, Mute, Short-Circuit And Thermal Protection, Standby | Type: | Class AB |
|---|---|---|---|
| Output Type: | 4-Channel (Quad) | Max Output Power X Channels @ Load: | 60W X 4 @ 2Ohm |
| Voltage - Supply: | 8V ~ 18V | Mounting Type: | Through Hole |
| Operating Temperature: | -40°C ~ 105°C (TA) | Supplier Device Package: | 27-Flexiwatt (Vertical) |
Product Description
TDA7562B Amplifier IC 4-Channel (Quad) Class AB 27-Flexiwatt (Vertical)
Specifications of TDA7562B
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Linear | |
| Amplifiers | |
| Audio Amplifiers | |
| Mfr | STMicroelectronics |
| Series | - |
| Package | Tube |
| Type | Class AB |
| Output Type | 4-Channel (Quad) |
| Max Output Power x Channels @ Load | 60W x 4 @ 2Ohm |
| Voltage - Supply | 8V ~ 18V |
| Features | I²C, Mute, Short-Circuit and Thermal Protection, Standby |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Supplier Device Package | 27-Flexiwatt (Vertical) |
| Package / Case | 27-Flexiwatt (Formed Leads) |
| Base Product Number | TDA7562 |
Features of TDA7562B
■ MOSFET output power stage
■ High output power capability 4 x 25 W/4 @ 14.4 V, 1 kHz, 10 % THD
■ Max. output power 4 x 68 W/2 , 4 x 42 W/4 @ 14.4 V
■ Full I2C bus driving:
– Standby
– Independent front/rear soft play/mute
– Selectable gain 30 dB - 16 dB
– I2C bus digital diagnostics
■ Full fault protection
■ DC offset detection
■ Four independent short circuit protection
■ Clipping detector (2 % / 10 %)
■ Standby/mute pin
■ ESD protection
Applications of TDA7562B
The TDA7562B is a new BCD technology quad bridge type of car radio amplifier in Flexiwatt27 package specially intended for car radio applications.
Environmental & Export Classifications of TDA7562B
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.33.0001 |
