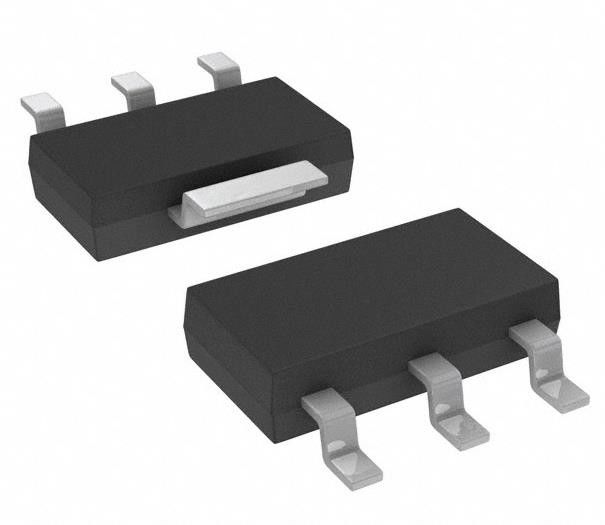

TDA3663/N1,135 Linear Voltage Regulator IC Positive Fixed 1 Output 100mA SC-73
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TDA3663/N1,135 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Output Configuration: | Positive | Output Type: | Fixed |
|---|---|---|---|
| Number Of Regulators: | 1 | Voltage - Input (Max): | 45V |
| Voltage - Output (Min/Fixed): | 3.3V | Voltage Dropout (Max): | 0.3V @ 50mA |
| Current - Output: | 100mA | Current - Quiescent (Iq): | 30 µA |
Product Description
TCLT1002 Optoisolator Transistor Output 5000Vrms 1 Channel 4-SOP
Specifications of TDA3663/N1,135
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - Linear | |
| Mfr | N-X-P USA Inc. |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 45V |
| Voltage - Output (Min/Fixed) | 3.3V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.3V @ 50mA |
| Current - Output | 100mA |
| Current - Quiescent (Iq) | 30 µA |
| Current - Supply (Max) | 2.5 mA |
| PSRR | 60dB (120Hz) |
| Control Features | - |
| Protection Features | Over Temperature, Reverse Polarity, Short Circuit, Transient Voltage |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | TO-261-4, TO-261AA |
| Supplier Device Package | SC-73 |
| Base Product Number | TDA366 |
Features of TDA3663/N1,135
■ Fixed 3.3 V, 100 mA regulator
■ Supply voltage range up to 45 V
■ Very low quiescent current of 15 µA (typical value)
■ Very low dropout voltage
■ High ripple rejection
■ Protections:
◆ Reverse polarity safe (down to −25 V without high reverse current)
◆ Negative transient of 50 V (RS = 10 Ω, t < 100 ms)
◆ Able to withstand voltages up to 18 V at the output (supply line may be short-circuited)
◆ ESD protection on all pins
◆ DC short-circuit safe to ground and VP of the regulator output
◆ Temperature protection (at Tj > 150 °C)
Applications of TDA3663/N1,135
The TDA3663 is a fixed 3.3 V voltage regulator with a very low dropout voltage and quiescent current, which operates over a wide supply voltage range.
Environmental & Export Classifications of TDA3663/N1,135
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
