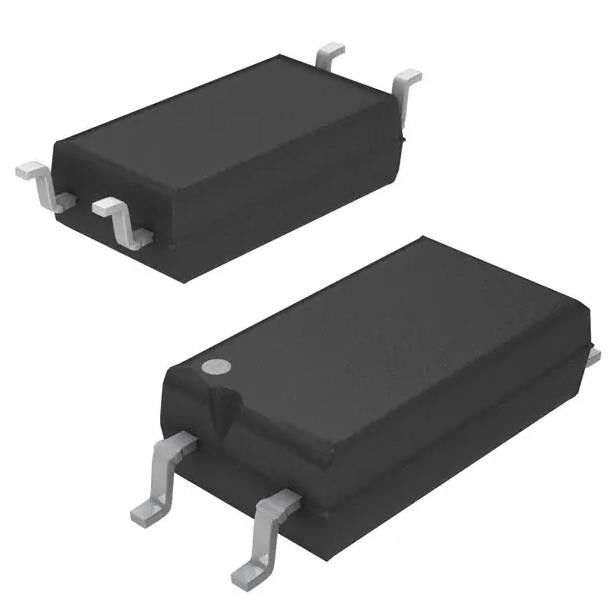

TCLT1002 Optoisolator Transistor Output 5000Vrms 1 Channel 4-SOP
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TCLT1002 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Number Of Channels: | 1 | Voltage - Isolation: | 5000Vrms |
|---|---|---|---|
| Current Transfer Ratio (Min): | 63% @ 10mA | Current Transfer Ratio (Max): | 125% @ 10mA |
| Turn On / Turn Off Time (Typ): | 6µs, 5µs | Rise / Fall Time (Typ): | 3µs, 4.7µs |
| Output Type: | Transistor | Voltage - Output (Max): | 70V |
Product Description
TCLT1002 Optoisolator Transistor Output 5000Vrms 1 Channel 4-SOP
Specifications of TCLT1002
| TYPE | DESCRIPTION |
| Category | Isolators |
| Optoisolators | |
| Transistor, Photovoltaic Output Optoisolators | |
| Mfr | Vishay Semiconductor Opto Division |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Number of Channels | 1 |
| Voltage - Isolation | 5000Vrms |
| Current Transfer Ratio (Min) | 63% @ 10mA |
| Current Transfer Ratio (Max) | 125% @ 10mA |
| Turn On / Turn Off Time (Typ) | 6µs, 5µs |
| Rise / Fall Time (Typ) | 3µs, 4.7µs |
| Input Type | DC |
| Output Type | Transistor |
| Voltage - Output (Max) | 70V |
| Current - Output / Channel | 50mA |
| Voltage - Forward (Vf) (Typ) | 1.25V |
| Current - DC Forward (If) (Max) | 60 mA |
| Vce Saturation (Max) | 300mV |
| Operating Temperature | -55°C ~ 100°C |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD, Gull Wing |
| Supplier Device Package | 4-SOP |
| Base Product Number | TCLT1002 |
Features of TCLT1002
• SMD low profile 4 lead package
• VIORM = 1050 V
• CTR flexibility available see order information
• Special construction
• Extra low coupling capacitance
• DC input with transistor output
• Creepage distance > 8 mm
Applications of TCLT1002
• Switchmode power supplies
• Computer peripheral interface
• Microprocessor system interface
Environmental & Export Classifications of TCLT1002
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.49.8000 |
