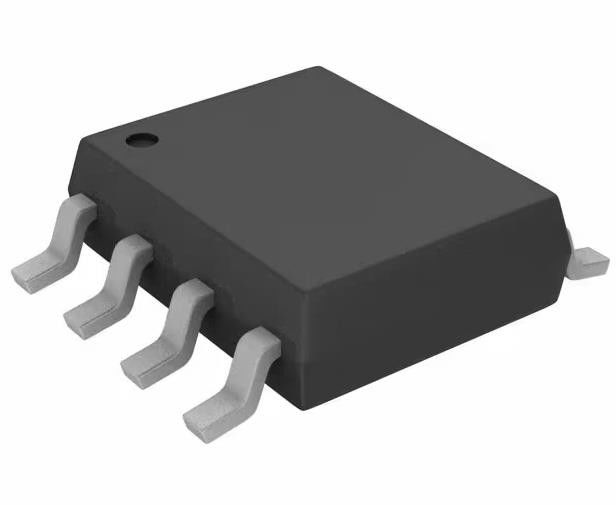

TC7W125FU Buffer, Non-Inverting 2 Element 1 Bit per Element 3-State Output 8-SSOP
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TC7W125FU |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Logic Type: | Buffer, Non-Inverting | Number Of Elements: | 2 |
|---|---|---|---|
| Number Of Bits Per Element: | 1 | Output Type: | 3-State |
| Current - Output High, Low: | 7.8mA, 7.8mA | Voltage - Supply: | 2V ~ 6V |
| Operating Temperature: | -40°C ~ 85°C (TA) | Mounting Type: | Surface Mount |
Product Description
TC74HC02AF NOR Gate Integrated Circuit Chip Chiaps 4 Channel 14-SOP
Specifications of TC7W125FU
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Buffers, Drivers, Receivers, Transceivers | |
| Mfr | Toshiba Semiconductor and Storage |
| Series | TC7W |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Logic Type | Buffer, Non-Inverting |
| Number of Elements | 2 |
| Number of Bits per Element | 1 |
| Input Type | - |
| Output Type | 3-State |
| Current - Output High, Low | 7.8mA, 7.8mA |
| Voltage - Supply | 2V ~ 6V |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 8-TSSOP, 8-MSOP (0.110", 2.80mm Width) |
| Supplier Device Package | 8-SSOP |
| Base Product Number | TC7W125 |
Features of TC7W125FU
• High speed: tpd = 10 ns (typ.) at VCC = 5 V
• Low power dissipation: ICC = 2 µA (max) at Ta = 25°C
• High noise immunity: VNIH = VNIL = 28% VCC (min)
• Output drive capability: 15 LSTTL loads
• Symmetrical output impedance: |IOH| = IOL = 6 mA (min)
• Balanced propagation delays: tpLH ∼− tpHL
• Wide operating voltage range: VCC (opr) = 2 to 6 V
Descriptions of TC7W125FU
The TC7W125FU is a high speed C2MOS Dual BUS Buffers fabricated with silicon gate C2MOS technology.
Environmental & Export Classifications of TC7W125FU
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
