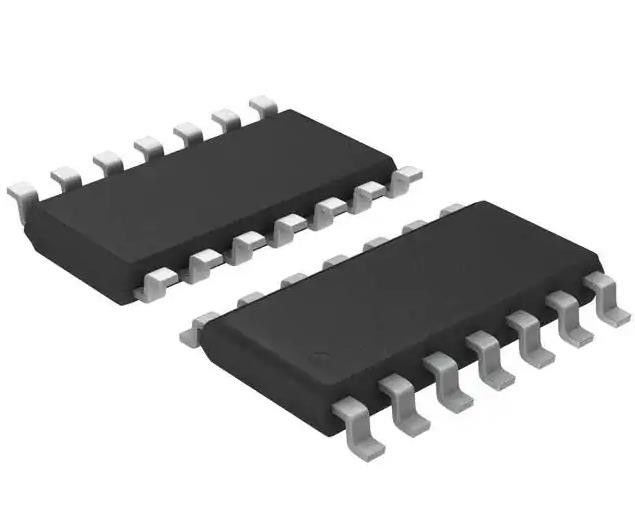

TC74HC02AF NOR Gate Integrated Circuit Chip Chiaps 4 Channel 14-SOP
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TC74HC02AF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Product Status: | Not For New Designs | Logic Type: | NOR Gate |
|---|---|---|---|
| Number Of Circuits: | 4 | Number Of Inputs: | 2 |
| Voltage - Supply: | 2V ~ 6V | Current - Quiescent (Max): | 1 µA |
| Current - Output High, Low: | 5.2mA, 5.2mA | Input Logic Level - Low: | 0.5V ~ 1.8V |
Product Description
TC74HC02AF NOR Gate Integrated Circuit Chip Chiaps 4 Channel 14-SOP
Specifications of TC74HC02AF
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Gates and Inverters | |
| Mfr | Toshiba Semiconductor and Storage |
| Series | 74HC |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Not For New Designs |
| Logic Type | NOR Gate |
| Number of Circuits | 4 |
| Number of Inputs | 2 |
| Features | - |
| Voltage - Supply | 2V ~ 6V |
| Current - Quiescent (Max) | 1 µA |
| Current - Output High, Low | 5.2mA, 5.2mA |
| Input Logic Level - Low | 0.5V ~ 1.8V |
| Input Logic Level - High | 1.5V ~ 4.2V |
| Max Propagation Delay @ V, Max CL | 13ns @ 6V, 50pF |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 14-SOP |
| Package / Case | 14-SOIC (0.209", 5.30mm Width) |
| Base Product Number | 74HC02 |
Features of TC74HC02AF
• High speed: tpd = 6 ns (typ.) at VCC = 5 V
• Low power dissipation: ICC = 1 μA (max) at Ta = 25°C
• High noise immunity: VNIH = VNIL = 28% VCC (min)
• Output drive capability: 10 LSTTL loads
• Symmetrical output impedance: |IOH| = IOL = 4 mA (min)
• Balanced propagation delays: tpLH ∼− tpHL
• Wide operating voltage range: VCC (opr) = 2 to 6 V
• Pin and function compatible with 74LS02
Descriptions of TC74HC02AF
The TC74HC02A is a high speed CMOS 2-INPUT NOR GATE fabricated with silicon gate C2MOS technology.
Environmental & Export Classifications of TC74HC02AF
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | RoHS Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
