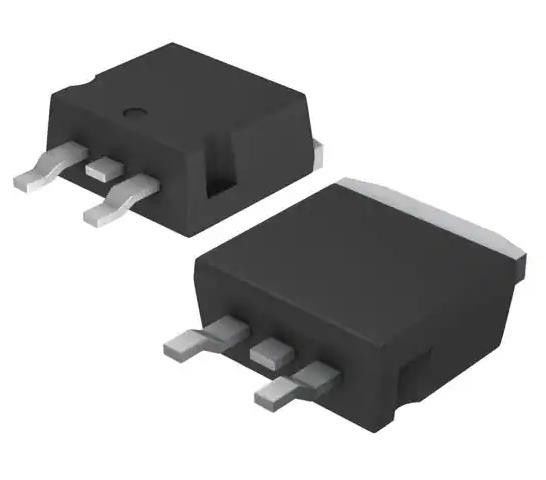

STPS30L30CG Diode Array 1 Pair Common Cathode 30 V 15A Surface Mount TO-263-3
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | STPS30L30CG |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Diode Configuration: | 1 Pair Common Cathode | Technology: | Schottky |
|---|---|---|---|
| Voltage - DC Reverse (Vr) (Max): | 30 V | Current - Average Rectified (Io) (per Diode): | 15A |
| Voltage - Forward (Vf) (Max) @ If: | 460 MV @ 15 A | Speed: | Fast Recovery =< 500ns, > 200mA (Io) |
| Current - Reverse Leakage @ Vr: | 1.5 MA @ 60 V | Operating Temperature - Junction: | 150°C (Max) |
| High Light: | STPS30L30CG,STPS30L30CG Diode Array IC |
||
Product Description
STPS30L30CG Diode Array 1 Pair Common Cathode 30 V 15A Surface Mount TO-263-3
Specifications of STPS30L30CG
| TYPE | DESCRIPTION |
| Category | Discrete Semiconductor Products |
| Diodes | |
| Rectifiers | |
| Diode Arrays | |
| Mfr | STMicroelectronics |
| Series | - |
| Package | Tube |
| Diode Configuration | 1 Pair Common Cathode |
| Technology | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 30 V |
| Current - Average Rectified (Io) (per Diode) | 15A |
| Voltage - Forward (Vf) (Max) @ If | 460 mV @ 15 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Current - Reverse Leakage @ Vr | 1.5 mA @ 60 V |
| Operating Temperature - Junction | 150°C (Max) |
| Mounting Type | Surface Mount |
| Package / Case | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB |
| Supplier Device Package | D2PAK |
| Base Product Number | STPS30L30 |
Features of STPS30L30CG
■ Very small conduction losses
■ Negligible switching losses
■ Extremely fast switching
■ Low forward voltage drop
■ Low thermal resistance
■ Avalanche capability specified
Applications of STPS30L30CG
This dual center tap Schottky rectifier is suited for switch mode power supplies and high frequency DC to DC converters.
Environmental & Export Classifications of STPS30L30CG
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.10.0080 |
