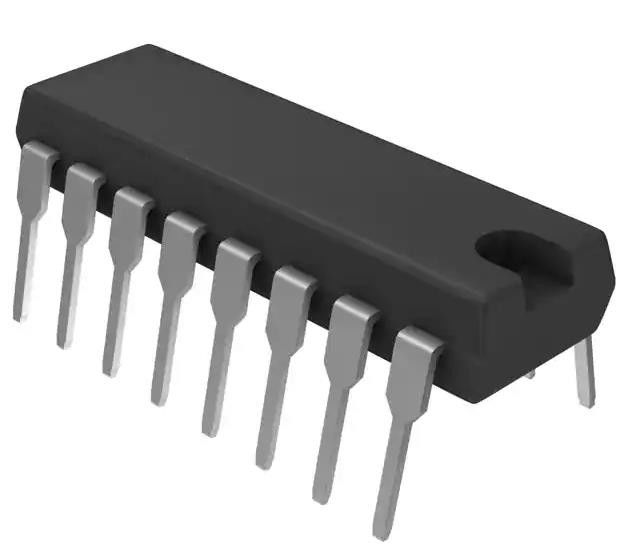

AM26C32IN 0/4 Receiver Integrated Circuit Chip RS422 RS423 16-PDIP
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | AM26C32IN |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Type: | Receiver | Protocol: | RS422, RS423 |
|---|---|---|---|
| Receiver Hysteresis: | 60 MV | Number Of Drivers/Receivers: | 0/4 |
| Data Rate: | 200Mbps | Voltage - Supply: | 4.5V ~ 5.5V |
| Operating Temperature: | -40°C ~ 85°C | Mounting Type: | Through Hole |
| High Light: | AM26C32IN,AM26C32IN Integrated Circuit Chip |
||
Product Description
AM26C32IN 0/4 Receiver Integrated Circuit Chip RS422, RS423 16-PDIP
Specifications of DS91C176TMAX
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Interface | |
| Drivers, Receivers, Transceivers | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tube |
| Product Status | Last Time Buy |
| Type | Receiver |
| Protocol | RS422, RS423 |
| Number of Drivers/Receivers | 0/4 |
| Duplex | - |
| Receiver Hysteresis | 60 mV |
| Data Rate | - |
| Voltage - Supply | 4.5V ~ 5.5V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole |
| Package / Case | 16-DIP (0.300", 7.62mm) |
| Supplier Device Package | 16-PDIP |
| Base Product Number | AM26C32 |
Features of DS91C176TMAX
1• Meets or Exceeds the Requirements of ANSI TIA/EIA-422-B, TIA/EIA-423-B, and ITU Recommendation V.10 and V.11
• Low Power, ICC = 10 mA Typical
• ±7-V Common-Mode Range With ±200-mV Sensitivity
• Input Hysteresis: 60 mV Typical
• tpd = 17 ns Typical
• Operates From a Single 5-V Supply
• 3-State Outputs
• Input Fail-Safe Circuitry
• Improved Replacements for AM26LS32 Device
• Available in Q-Temp Automotive
Applications of DS91C176TMAX
• High-Reliability Automotive Applications
• Factory Automation
• ATM and Cash Counters
• Smart Grid
• AC and Servo Motor Drives
Environmental & Export Classifications of DS91C176TMAX
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
