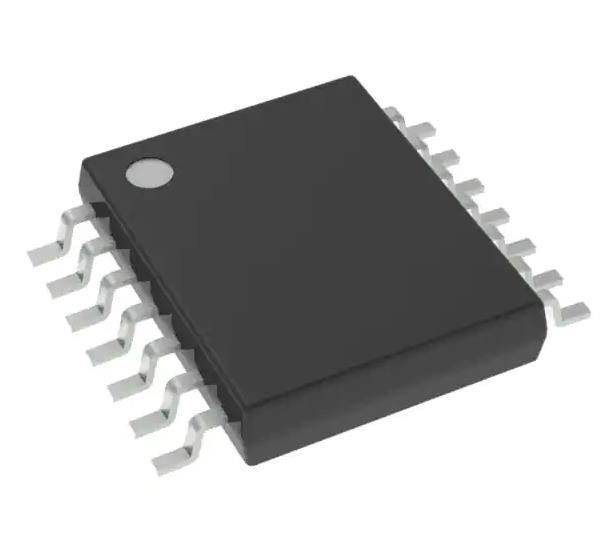

DAC7568IAPWR 12 Bit Digital to Analog Converter 8 14-TSSOP
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | DAC7568IAPWR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Number Of Bits: | 12 | Number Of D/A Converters: | 8 |
|---|---|---|---|
| Settling Time: | 10µs | Output Type: | Voltage - Buffered |
| Differential Output: | No | Data Interface: | I²C |
| Reference Type: | External, Internal | Voltage - Supply, Analog: | 2.7V ~ 5.5V |
| Voltage - Supply, Digital: | 2.7V ~ 5.5V | INL/DNL (LSB): | ±0.3, ±0.05 |
Product Description
DAC7568IAPWR 12 Bit Digital to Analog Converter 8 14-TSSOP
Specifications of DAC7568IAPWR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Data Acquisition | |
| Digital to Analog Converters (DAC) | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Number of Bits | 12 |
| Number of D/A Converters | 8 |
| Settling Time | 10µs |
| Output Type | Voltage - Buffered |
| Differential Output | No |
| Data Interface | SPI, DSP |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 2.7V ~ 5.5V |
| Voltage - Supply, Digital | 2.7V ~ 5.5V |
| INL/DNL (LSB) | ±0.3, ±0.05 |
| Architecture | String DAC |
| Operating Temperature | -40°C ~ 125°C |
| Package / Case | 14-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 14-TSSOP |
| Mounting Type | Surface Mount |
| Base Product Number | DAC7568 |
Features of DAC7568IAPWR
• Relative Accuracy:
– DAC7568 (12-Bit): 0.3 LSB INL
– DAC8168 (14-Bit): 1 LSB INL
– DAC8568 (16-Bit): 4 LSB INL
• Glitch Energy: 0.1nV-s
• Internal Reference:
– 2.5V Reference Voltage (disabled by default)
– 0.004% Initial Accuracy (typ)
– 2ppm/°C Temperature Drift (typ)
– 5ppm/°C Temperature Drift (max)
– 20mA Sink/Source Capability
• Power-On Reset to Zero Scale or Midscale
• Ultralow Power Operation: 1.25mA at 5V Including Internal Reference Current
• Wide Power-Supply Range: +2.7V to +5.5V
• Monotonic Over Entire Temperature Range
• Low-Power Serial Interface with Schmitt-Triggered Inputs: Up to 50MHz
• On-Chip Output Buffer Amplifier with Rail-to-Rail Operation
• Temperature Range: –40°C to +125°C
Applications of DAC7568IAPWR
• Portable Instrumentation
• Closed-Loop Servo-Control/Process Control
• Data Acquisition Systems
• Programmable Attenuation, Digital Gain, and Offset Adjustment
• Programmable Voltage and Current Sources
Environmental & Export Classifications of DAC7568IAPWR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
