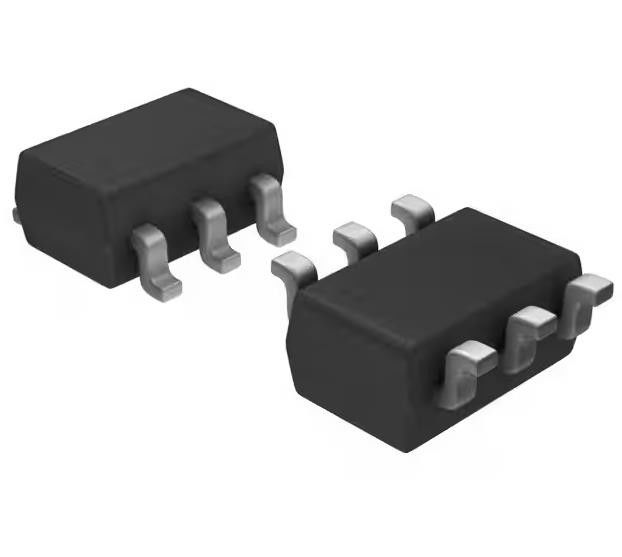

DAC5571IDBVR 8 Bit Digital to Analog Converter 1 SOT-23-6
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | DAC5571IDBVR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Number Of Bits: | 8 | Number Of D/A Converters: | 1 |
|---|---|---|---|
| Settling Time: | 8µs | Output Type: | Voltage - Buffered |
| Differential Output: | No | Data Interface: | I²C |
| Reference Type: | Supply | Voltage - Supply, Analog: | 2.7V ~ 5.5V |
| Voltage - Supply, Digital: | 2.7V ~ 5.5V | INL/DNL (LSB): | ±0.5 (Max), ±0.25 (Max) |
Product Description
DAC5571IDBVR 8 Bit Digital to Analog Converter 1 SOT-23-6
Specifications of DAC5571IDBVR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Data Acquisition | |
| Digital to Analog Converters (DAC) | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Number of Bits | 8 |
| Number of D/A Converters | 1 |
| Settling Time | 8µs |
| Output Type | Voltage - Buffered |
| Differential Output | No |
| Data Interface | I²C |
| Reference Type | Supply |
| Voltage - Supply, Analog | 2.7V ~ 5.5V |
| Voltage - Supply, Digital | 2.7V ~ 5.5V |
| INL/DNL (LSB) | ±0.5 (Max), ±0.25 (Max) |
| Architecture | String DAC |
| Operating Temperature | -40°C ~ 105°C |
| Package / Case | SOT-23-6 |
| Supplier Device Package | SOT-23-6 |
| Mounting Type | Surface Mount |
| Base Product Number | DAC5571 |
Features of DAC5571IDBVR
* Micropower Operation: 125 uA @ 3 V
* Fast Update Rate: 188 KSPS
* Power-On Reset to Zero
* +2.7-V to +5.5-V Power Supply
* Specified Monotonic by Design
* I2CTM Interface up to 3.4 Mbps
* On-Chip Output Buffer Amplifier, Rail-to-RailOperation
* Double-Buffered Input Register
* Address Support for up to Two DAC5571s
* Small 6 Lead SOT 23 Package
* Operation From -40°C to 105°C
Applications of DAC5571IDBVR
* Process Control
* Data Acquistion Systems
* Closed-Loop Servo Control
* PC Peripherals
* Portable Instrumentation
Environmental & Export Classifications of DAC5571IDBVR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
