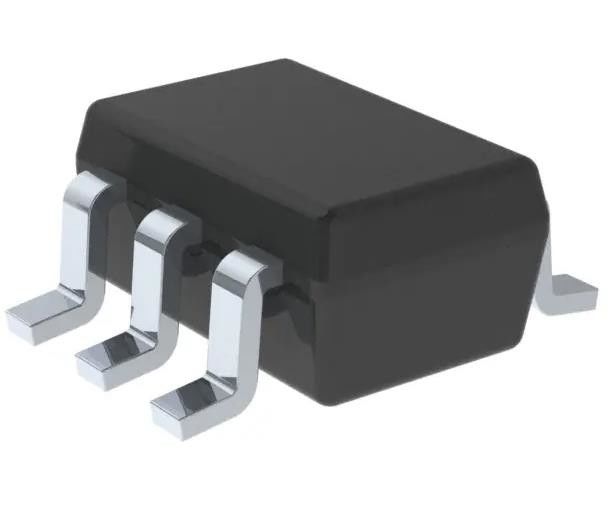

DAC5311IDCKR 8 Bit Digital to Analog Converter 1 SC-70-6
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | DAC5311IDCKR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Number Of Bits: | 8 | Number Of D/A Converters: | 1 |
|---|---|---|---|
| Settling Time: | 12µs (Typ) | Output Type: | Voltage - Buffered |
| Differential Output: | No | Data Interface: | SPI, DSP |
| Reference Type: | Supply | Voltage - Supply, Analog: | 2V ~ 5.5V |
Product Description
DAC5311IDCKR 8 Bit Digital to Analog Converter 1 SC-70-6
Specifications of DAC5311IDCKR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Data Acquisition | |
| Digital to Analog Converters (DAC) | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Number of Bits | 8 |
| Number of D/A Converters | 1 |
| Settling Time | 12µs (Typ) |
| Output Type | Voltage - Buffered |
| Differential Output | No |
| Data Interface | SPI, DSP |
| Reference Type | Supply |
| Voltage - Supply, Analog | 2V ~ 5.5V |
| Voltage - Supply, Digital | 2V ~ 5.5V |
| INL/DNL (LSB) | ±0.01, ±0.01 |
| Architecture | String DAC |
| Operating Temperature | -40°C ~ 125°C |
| Package / Case | 6-TSSOP, SC-88, SOT-363 |
| Supplier Device Package | SC-70-6 |
| Mounting Type | Surface Mount |
| Base Product Number | DAC5311 |
Features of DAC5311IDCKR
* Relative Accuracy
- 0.25 LSB INL(DAC5311: 8-Bit)
- 0.5 LSB INL(DAC6311: 10-Bit)
- 1 LSB INL(DAC7311: 12-Bit)
* microPower Operation: 80 A at 2.0 V
* Power-Down: 0.5 A at 5 V, 0.1 A at 2.0 V
* Wide Power Supply: 2.0 V to 5.5 V
* Power-On Reset to Zero Scale
* Straight Binary Data Format
* Low Power Serial Interface With Schmitt-Triggered Inputs: up to 50 MHz
* On-Chip Output Buffer Amplifier, Rai-to-RailOperation
* SYNC Interrupt Facility
* Extended Temperature Range -40°C to +125C
* Pin-Compatible Family in a Tiny, 6-Pin SC70Package
Applications of DAC5311IDCKR
* Portable, Battery-Powered instruments
* Process Controls
* Digital Gain and Offset Adjustment
* Programmable Voltage and Current Sources
Environmental & Export Classifications of DAC5311IDCKR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
