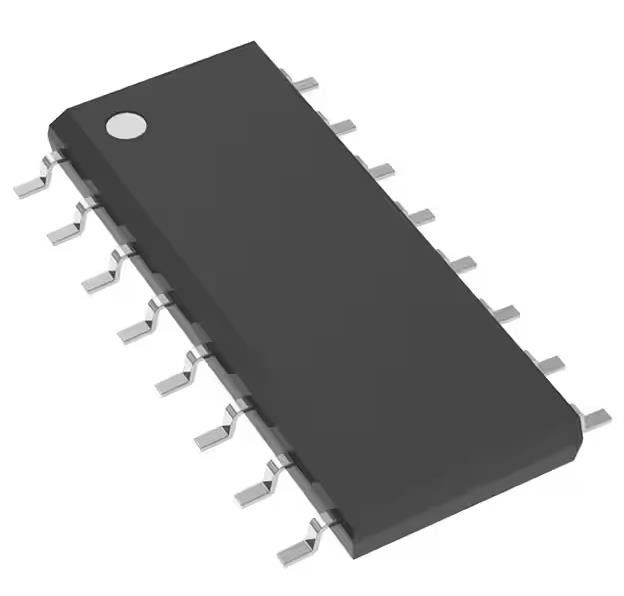

DAC0808LCMX/NOPB 8 Bit Digital to Analog Converter 1 16-SOIC
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | DAC0808LCMX/NOPB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Number Of Bits: | 8 | Number Of D/A Converters: | 1 |
|---|---|---|---|
| Settling Time: | 150ns (Typ) | Output Type: | Current - Unbuffered |
| Differential Output: | No | Data Interface: | Parallel |
| Reference Type: | External | Voltage - Supply, Analog: | ±4.5V ~ 18V |
Product Description
DAC0808LCMX/NOPB 8 Bit Digital to Analog Converter 1 16-SOIC
Specifications of DAC0808LCMX/NOPB
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Data Acquisition | |
| Digital to Analog Converters (DAC) | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Number of Bits | 8 |
| Number of D/A Converters | 1 |
| Settling Time | 150ns (Typ) |
| Output Type | Current - Unbuffered |
| Differential Output | No |
| Data Interface | Parallel |
| Reference Type | External |
| Voltage - Supply, Analog | ±4.5V ~ 18V |
| Voltage - Supply, Digital | - |
| INL/DNL (LSB) | - |
| Architecture | Multiplying DAC |
| Operating Temperature | 0°C ~ 75°C |
| Package / Case | 16-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 16-SOIC |
| Mounting Type | Surface Mount |
| Base Product Number | DAC0808 |
Features of DAC0808LCMX/NOPB
* Relative accuracy: ±0.19% error maximum
* Full scale current match: ±1 LSB typ
* Fast settling time: 150 ns typ
* Noninverting digital inputs are TTL and CMOS compatible
* High speed multiplying input slew rate: 8 mA/µs
* Power supply voltage range: ±4.5V to ±18V
* Low power consumption: 33 mW @ ±5V
Applications of DAC0808LCMX/NOPB
The DAC0808 is an 8-bit monolithic digital-to-analog converter (DAC) featuring a full scale output current settling time of 150 ns while dissipating only 33 mW with ±5V supplies.
Environmental & Export Classifications of DAC0808LCMX/NOPB
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
