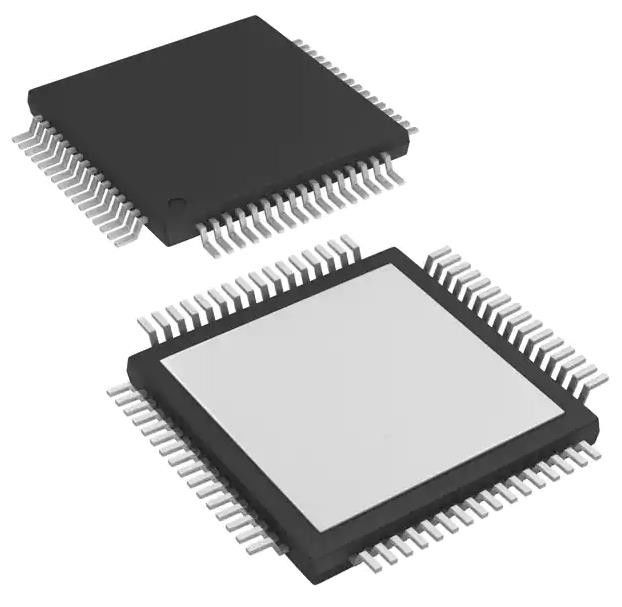

ADS1605IPAPR 16 Bit Analog to Digital Converter 1 Input 1 Sigma-Delta 64-HTQFP
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | ADS1605IPAPR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Number Of Bits: | 16 | Sampling Rate (Per Second): | 5M |
|---|---|---|---|
| Number Of Inputs: | 1 | Input Type: | Differential, |
| Data Interface: | Parallel | Configuration: | ADC |
| Number Of A/D Converters: | 1 | Architecture: | Sigma-Delta |
| Reference Type: | External, Internal | Voltage - Supply, Digital: | 2.7V ~ 3.3V |
Product Description
ADS1605IPAPR 16 Bit Analog to Digital Converter 1 Input 1 Sigma-Delta 64-HTQFP
Specifications of ADS1605IPAPR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Data Acquisition | |
| Analog to Digital Converters (ADC) | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Number of Bits | 16 |
| Sampling Rate (Per Second) | 5M |
| Number of Inputs | 1 |
| Input Type | Differential |
| Data Interface | Parallel |
| Configuration | ADC |
| Ratio - S/H:ADC | - |
| Number of A/D Converters | 1 |
| Architecture | Sigma-Delta |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 2.7V ~ 3.3V |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 64-PowerTQFP |
| Supplier Device Package | 64-HTQFP (10x10) |
| Mounting Type | Surface Mount |
| Base Product Number | ADS1605 |
Features of ADS1605IPAPR
Data Rate: 5MSPS (10MSPS in 2X Mode)
Signal-to-Noise Ratio: 88dB
Total Harmonic Distortion: −99dB
Spurious-Free Dynamic Range: 101dB
Linear Phase with 2.45MHz Bandwidth
Passband Ripple: ±0.0025dB
Selectable On-Chip Reference
Directly Connects to TMS320C6000 DSPs
Easily Upgradable to 18 Bits with the ADS1625 and ADS1626
Adjustable Power Dissipation: 315 to 570mW
Power Down Mode
Supplies: Analog +5V
-Digital +3V
-Digital I/O +2.7V to +5.25V
Applications of ADS1605IPAPR
Scientific Instruments
Automated Test Equipment
Data Acquisition
Medical Imaging
Vibration Analysis
Environmental & Export Classifications of ADS1605IPAPR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | 3A991C4 |
| HTSUS | 8542.39.0001 |
