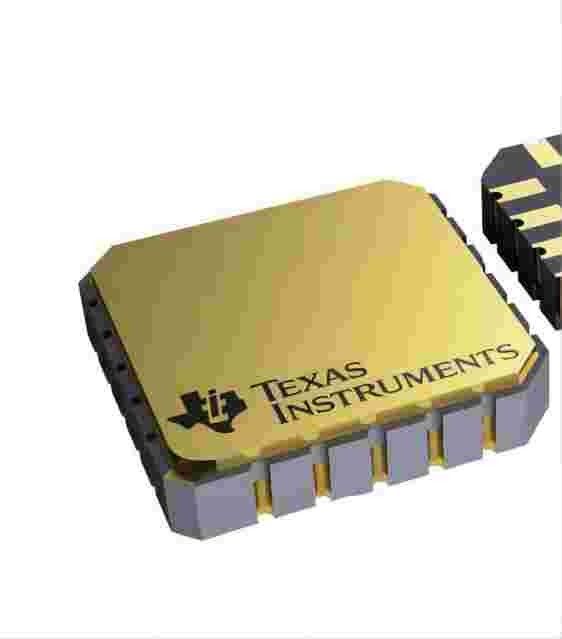

SNJ54BCT245W Transceiver, Non-Inverting 1 Element 8 Bit per Element 3-State
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | SNJ54BCT244W |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Logic Type: | Transceiver, Non-Inverting | Number Of Elements: | 1 |
|---|---|---|---|
| Number Of Bits Per Element: | 8 | Output Type: | 3-State |
| Current - Output High, Low: | 3mA, 24mA; 15mA, 64mA | Voltage - Supply: | 4.5V ~ 5.5V |
| Operating Temperature: | -55°C ~ 125°C (TA) | Mounting Type: | Surface Mount |
Product Description
SNJ54BCT245W Transceiver, Non-Inverting 1 Element 8 Bit per Element 3-State
Specifications of SNJ54BCT245W
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Buffers, Drivers, Receivers, Transceivers | |
| Mfr | Texas Instruments |
| Series | 54BCT |
| Package | Bulk |
| Logic Type | Transceiver, Non-Inverting |
| Number of Elements | 1 |
| Number of Bits per Element | 8 |
| Input Type | - |
| Output Type | 3-State |
| Current - Output High, Low | 3mA, 24mA; 15mA, 64mA |
| Voltage - Supply | 4.5V ~ 5.5V |
| Operating Temperature | -55°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 20-CFlatPack |
| Supplier Device Package | 20-CFP |
| Base Product Number | 54BCT245 |
Features of SNJ54BCT245W
* 3-State Outputs Drive Bus Lines or Buffer Memory Address Registers
* ESD Protection Exceeds JESD 22
– 2000-V Human-Body Model (A114-A
Applications of SNJ54BCT245W
These octal bus transceivers are designed for asynchronous communication between data buses.
Environmental & Export Classifications of SNJ54BCT245W
| ATTRIBUTE | DESCRIPTION |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
