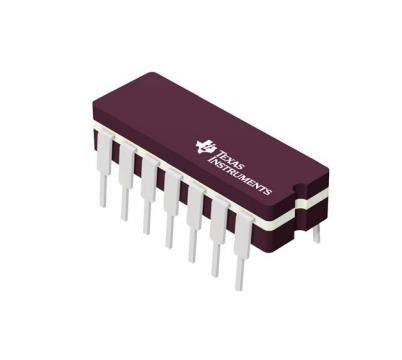

CD54HCT393F Counter IC Binary Counter 2 Element 4 Bit Negative Edge 14-CDIP
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | CD54HCT393F |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Logic Type: | Binary Counter | Direction: | Up |
|---|---|---|---|
| Number Of Elements: | 2 | Number Of Bits Per Element: | 4 |
| Reset: | Asynchronous | Count Rate: | 27 MHz |
| Trigger Type: | Negative Edge | Voltage - Supply: | 4.5 V ~ 5.5 V |
Product Description
CD54HCT393F Counter IC Binary Counter 2 Element 4 Bit Negative Edge 14-CDIP
Specifications of CD54HCT393F
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Counters, Dividers | |
| Mfr | Texas Instruments |
| Series | 54HCT |
| Package | Tube |
| Logic Type | Binary Counter |
| Direction | Up |
| Number of Elements | 2 |
| Number of Bits per Element | 4 |
| Reset | Asynchronous |
| Timing | - |
| Count Rate | 27 MHz |
| Trigger Type | Negative Edge |
| Voltage - Supply | 4.5 V ~ 5.5 V |
| Operating Temperature | -55°C ~ 125°C (TA) |
| Mounting Type | Through Hole |
| Package / Case | 14-CDIP (0.300", 7.62mm) |
| Supplier Device Package | 14-CDIP |
Features of SN54107J
• Fully static operation
• Buffered inputs
• Common reset
• Negative-edge clocking
• Fanout (over temperature range):
– Standard outputs 10 LSTTL loads
– Bus driver outputs 15 LSTTL loads
• Wide operating temperature range: –55℃ to 125℃
• Balanced propagation delay and transition times
• Significant power reduction compared to LSTTL Logic ICs
• HC types
– 2 V to 6 V operation
– High noise immunity: NIL = 30%, NIH = 30% of VCC at VCC = 5 V
• HCT types
– 4.5 V to 5.5 V operation
– Direct LSTTL input logic compatibility, VIL = 0.8 V (max), VIH = 2 V (min)
– CMOS input compatibility, II ≤ 1 µA at VOL, VOH
Applications of CD54HCT393F
The ’HC393 and ’HCT393 are 4-stage ripple-carry binary counters.
Environmental & Export Classifications of CD54HCT393F
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | Not Applicable |
