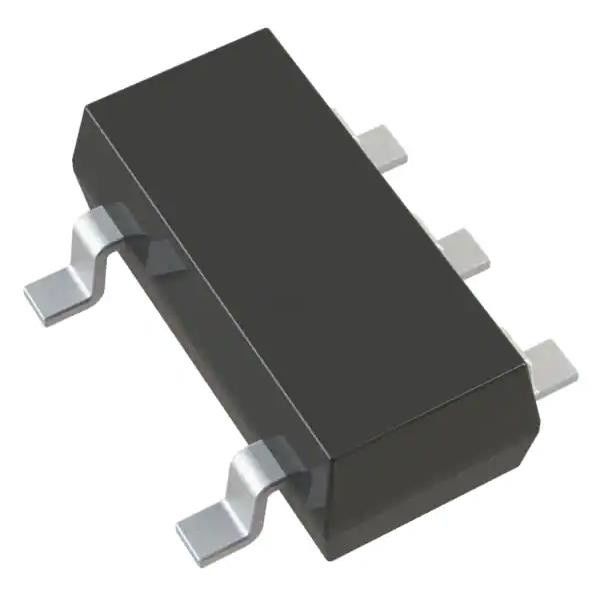

LTC6900CS5#TRMPBF Oscillator, Silicon IC 1kHz ~ 20MHz TSOT-23-5
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | LTC6900CS5#TRMPBF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Frequency: | 1kHz ~ 20MHz | Voltage - Supply: | 2.7V ~ 5.5V |
|---|---|---|---|
| Current - Supply: | 920 µA | Operating Temperature: | -40°C ~ 85°C |
| Package / Case: | SOT-23-5 Thin, TSOT-23-5 | Supplier Device Package: | TSOT-23-5 |
| Mounting Type: | Surface Mount | Base Product Number: | LTC6900 |
Product Description
LTC6900CS5#TRMPBF Oscillator, Silicon IC 1kHz ~ 20MHz TSOT-23-5
Specifications of LTC6900CS5#TRMPBF
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Clock/Timing | |
| Programmable Timers and Oscillators | |
| Mfr | Analog Devices Inc. |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Type | Oscillator, Silicon |
| Count | - |
| Frequency | 1kHz ~ 20MHz |
| Voltage - Supply | 2.7V ~ 5.5V |
| Current - Supply | 920 µA |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | SOT-23-5 Thin, TSOT-23-5 |
| Supplier Device Package | TSOT-23-5 |
| Mounting Type | Surface Mount |
| Base Product Number | LTC6900 |
Features of LTC6900CS5#TRMPBF
* One External Resistor Sets the Frequency
* 1kHz to 20MHz Frequency Range
* 500μA Typical Supply Current, VS = 3V, 3MHz
* Frequency Error ≤1.5% Max, 5kHz to 10MHz (TA = 25°C)
* Frequency Error ≤2% Max, 5kHz to 10MHz (TA = 0°C to 70°C)
* ±40ppm/°C Temperature Stability
* 0.04%/V Supply Stability
* 50% ±1% Duty Cycle 1kHz to 2MHz
* 50% ±5% Duty Cycle 2MHz to 10MHz
* Fast Start-Up Time: 50μs to 1.5ms
* 100Ω CMOS Output Driver
* Operates from a Single 2.7V to 5.5V Supply
* Low Profi le (1mm) ThinSOT™ Package
Applications of LTC6900CS5#TRMPBF
* Portable and Battery-Powered Equipment
* PDAs
* Cell Phones
* Low Cost Precision Oscillator
* Charge Pump Driver
* Switching Power Supply Clock Reference
* Clocking Switched Capacitor Filters
* Fixed Crystal Oscillator Replacement
* Ceramic Oscillator Replacement
Environmental & Export Classifications of LTC6900CS5#TRMPBF
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
