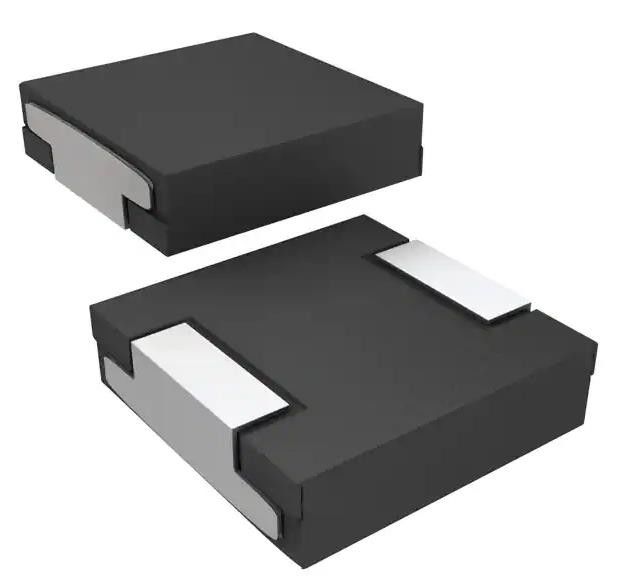

IHLP5050FDER3R3M5A 3.3 µH Shielded Molded Inductor 20.2 A 5.44mOhm Max
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | IHLP5050FDER3R3M5A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Inductance: | 3.3 µH | Tolerance: | ±20% |
|---|---|---|---|
| Current Rating (Amps): | 20.2 A | Current - Saturation (Isat): | 16.7A |
| Shielding: | Shielded | DC Resistance (DCR): | 5.44mOhm Max |
| Frequency - Self Resonant: | 17.8MHz | Operating Temperature: | -55°C ~ 125°C |
Product Description
IHLP5050FDER3R3M5A 3.3 µH Shielded Molded Inductor 20.2 A 5.44mOhm Max
Specifications of IHLP5050FDER3R3M5A
| TYPE | DESCRIPTION |
| Category | Inductors, Coils, Chokes |
| Fixed Inductors | |
| Mfr | Vishay Dale |
| Series | IHLP-5050FD-5A |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Type | Molded |
| Material - Core | - |
| Inductance | 3.3 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 20.2 A |
| Current - Saturation (Isat) | 16.7A |
| Shielding | Shielded |
| DC Resistance (DCR) | 5.44mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 17.8MHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.522" L x 0.508" W (13.26mm x 12.90mm) |
| Height - Seated (Max) | 0.252" (6.40mm) |
Environmental & Export Classifications of IHLP5050FDER3R3M5A
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| ECCN | EAR99 |
| HTSUS | 8504.50.4000 |
