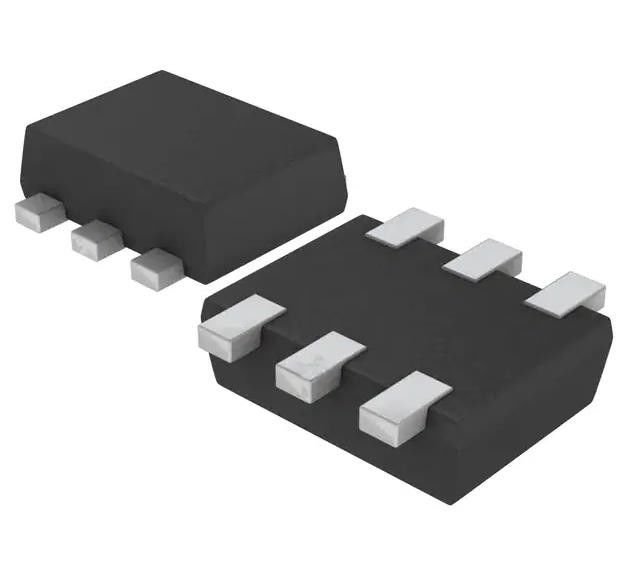

EM6K34T2CR Mosfet Array Integrated Circuit Chip 50V 200mA 120mW Surface Mount EMT6
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | EM6K34T2CR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Configuration: | 2 N-Channel (Dual) | FET Feature: | Logic Level Gate, 0.9V Drive |
|---|---|---|---|
| Drain To Source Voltage (Vdss): | 50V | Current - Continuous Drain (Id) @ 25°C: | 200mA |
| Rds On (Max) @ Id, Vgs: | 2.2Ohm @ 200mA, 4.5V | Vgs(th) (Max) @ Id: | 800mV @ 1mA |
| Input Capacitance (Ciss) (Max) @ Vds: | 26pF @ 10V | Power - Max: | 120mW |
Product Description
EM6K34T2CR Mosfet Array Integrated Circuit Chip 50V 200mA 120mW Surface Mount EMT6
Specifications of EM6K34T2CR
| TYPE | DESCRIPTION |
| Category | Discrete Semiconductor Products |
| Transistors | |
| FETs, MOSFETs | |
| FET, MOSFET Arrays | |
| Mfr | Rohm Semiconductor |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Technology | MOSFET (Metal Oxide) |
| Configuration | 2 N-Channel (Dual) |
| FET Feature | Logic Level Gate, 0.9V Drive |
| Drain to Source Voltage (Vdss) | 50V |
| Current - Continuous Drain (Id) @ 25°C | 200mA |
| Rds On (Max) @ Id, Vgs | 2.2Ohm @ 200mA, 4.5V |
| Vgs(th) (Max) @ Id | 800mV @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | - |
| Input Capacitance (Ciss) (Max) @ Vds | 26pF @ 10V |
| Power - Max | 120mW |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | SOT-563, SOT-666 |
| Supplier Device Package | EMT6 |
| Base Product Number | EM6K34 |
Features of EM6K34T2CR
1) High speed switing.
2) Small package(EMT6).
3)Ultra low voltage drive(0.9V drive).
Applications of EM6K34T2CR
Switching
Environmental & Export Classifications of EM6K34T2CR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.21.0095 |
