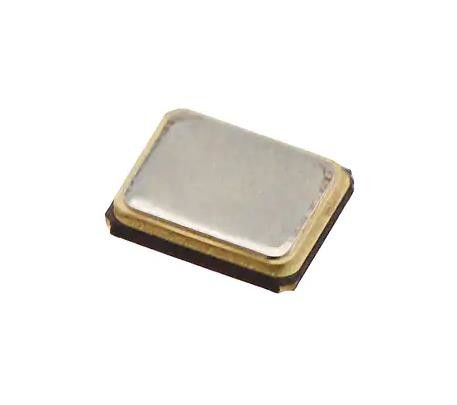

ECS-160-8-36CKM-TR 16 MHz Crystal Integrated Circuit Chip 8pF 80 Ohms 4-SMD No Lead
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | ECS-160-8-36CKM-TR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Type: | MHz Crystal | Frequency: | 16 MHz |
|---|---|---|---|
| Frequency Stability: | ±10ppm | Frequency Tolerance: | ±10ppm |
| Load Capacitance: | 8pF | ESR (Equivalent Series Resistance): | 80 Ohms |
| Operating Mode: | Fundamental | Operating Temperature: | -20°C ~ 70°C |
| High Light: | ECS-160-8-36CKM-TR,ECS-160-8-36CKM-TR Integrated Circuit Chip,Crystal Integrated Circuit Chip |
||
Product Description
ECS-160-8-36CKM-TR 16 MHz ±10ppm Crystal 8pF 80 Ohms 4-SMD, No Lead
Specifications of ECS-160-8-36CKM-TR
| TYPE | DESCRIPTION |
| Category | Crystals, Oscillators, Resonators |
| Crystals | |
| Mfr | ECS Inc. |
| Series | ECX-2236 |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Type | MHz Crystal |
| Frequency | 16 MHz |
| Frequency Stability | ±10ppm |
| Frequency Tolerance | ±10ppm |
| Load Capacitance | 8pF |
| ESR (Equivalent Series Resistance) | 80 Ohms |
| Operating Mode | Fundamental |
| Operating Temperature | -20°C ~ 70°C |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| Height - Seated (Max) | 0.026" (0.65mm) |
Features of ECS-160-8-36CKM-TR
• Low Profile
• 2.5 x 2.0 mm Footprint
• Extended Temp. Range
• IOT/Wearable applications
Applications of ECS-160-8-36CKM-TR
The miniature ECX-2236 is a compact SMD Crystal. The industry standard 2.5 x 2.0 x 0.55 mm is ideal for bluetooth, LoRa WAN,and wireless applications.
Environmental & Export Classifications of ECS-160-8-36CKM-TR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.60.0050 |
