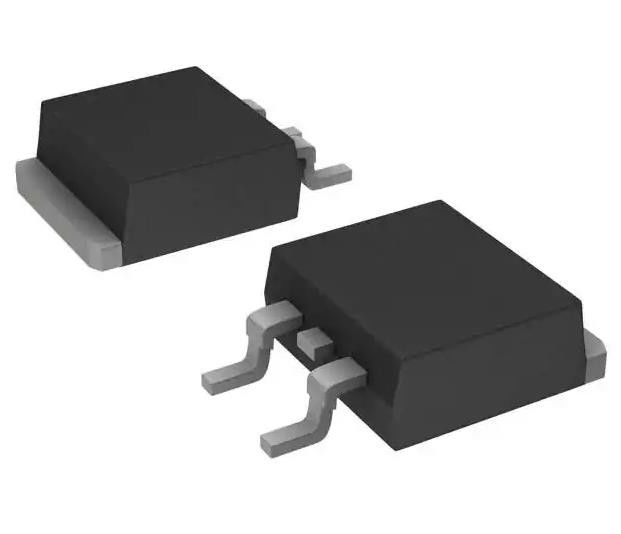

IPB64N25S3-20 N-Channel MOSFET IC 250 V 64A (Tc) 300W (Tc) Surface Mount PG-TO263-3-2
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | IPB64N25S3-20 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| FET Type: | N-Channel | Technology: | MOSFET (Metal Oxide) |
|---|---|---|---|
| Drain To Source Voltage (Vdss): | 250 V | Current - Continuous Drain (Id) @ 25°C: | 64A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On): | 10V | Rds On (Max) @ Id, Vgs: | 20mOhm @ 64A, 10V |
| Vgs(th) (Max) @ Id: | 4V @ 270µA | Gate Charge (Qg) (Max) @ Vgs: | 89 NC @ 10 V |
| High Light: | IPB64N25S3-20,IPB64N25S3-20 MOSFET IC,N-Channel MOSFET IC |
||
Product Description
IPB64N25S3-20 N-Channel 250 V 64A (Tc) 300W (Tc) Surface Mount PG-TO263-3-2
Specifications of IPB64N25S3-20
| TYPE | DESCRIPTION |
| Category | Discrete Semiconductor Products |
| Transistors | |
| FETs, MOSFETs | |
| Single FETs, MOSFETs | |
| Mfr | Infineon Technologies |
| Series | OptiMOS™ |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 250 V |
| Current - Continuous Drain (Id) @ 25°C | 64A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 20mOhm @ 64A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 270µA |
| Gate Charge (Qg) (Max) @ Vgs | 89 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 7000 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 300W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | PG-TO263-3-2 |
| Package / Case | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB |
| Base Product Number | IPB64N25 |
Features of IPB64N25S3-20
• N-channel - Enhancement mode
• AEC qualified
• MSL1 up to 260°C peak reflow
• 175°C operating temperature
Applications of IPB64N25S3-20
• Green Product (RoHS compliant)
• 100% Avalanche tested
Environmental & Export Classifications of IPB64N25S3-20
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.29.0095 |
