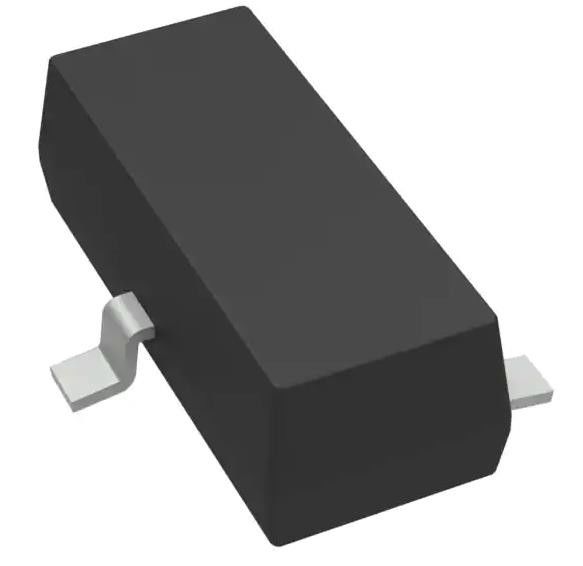

LM4040CIM3-2.5/NOPB Shunt Voltage Reference IC Fixed 2.5V V ±0.5% 15 MA SOT-23-3
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | LM4040CIM3-2.5/NOPB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Reference Type: | Shunt | Output Type: | Fixed |
|---|---|---|---|
| Voltage - Output (Min/Fixed): | 2.5V | Current - Output: | 15 MA |
| Tolerance: | ±0.5% | Temperature Coefficient: | 100ppm/°C |
| Noise - 10Hz To 10kHz: | 35µVrms | Current - Cathode: | 65 µA |
| High Light: | LM4040CIM3-2.5/NOPB,LM4040CIM3-2.5/NOPB Voltage Reference IC,Shunt Voltage Reference IC |
||
Product Description
LM4040CIM3-2.5/NOPB Shunt Voltage Reference IC Fixed 2.5V V ±0.5% 15 mA SOT-23-3
Specifications of LM4040CIM3-2.5/NOPB
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Reference | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Reference Type | Shunt |
| Output Type | Fixed |
| Voltage - Output (Min/Fixed) | 2.5V |
| Current - Output | 15 mA |
| Tolerance | ±0.5% |
| Temperature Coefficient | 100ppm/°C |
| Noise - 0.1Hz to 10Hz | - |
| Noise - 10Hz to 10kHz | 35µVrms |
| Voltage - Input | - |
| Current - Supply | - |
| Current - Cathode | 65 µA |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | SOT-23-3 |
| Base Product Number | LM4040 |
Features of LM4040CIM3-2.5/NOPB
• SOT-23 AEC Q-100 Grades 1 and 3 Available
• Small Packages: SOT-23, TO-92, and SC70
• No Output Capacitor Required
• Tolerates Capacitive Loads
• Fixed Reverse Breakdown Voltages of 2.048 V, 2.5 V, 3 V, 4.096 V, 5 V, 8.192 V, and 10 V
• Key Specifications (2.5-V LM4040-N) – Output Voltage Tolerance (A Grade, 25°C): ±0.1% (Maximum)
– Low Output Noise (10 Hz to 10 kHz): 35 μVrms (Typical)
– Wide Operating Current Range: 60 μA to 15 mA
– Industrial Temperature Range: −40°C to +85°C
– Extended Temperature Range: −40°C to +125°C
– Low Temperature Coefficient: 100 ppm/°C (Maximum)
Applications of LM4040CIM3-2.5/NOPB
• Portable, Battery-Powered Equipment
• Data Acquisition Systems
• Instrumentation
• Process Controls
• Energy Management
• Product Testing
• Automotives
• Precision Audio Components
Environmental & Export Classifications of LM4040CIM3-2.5/NOPB
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
