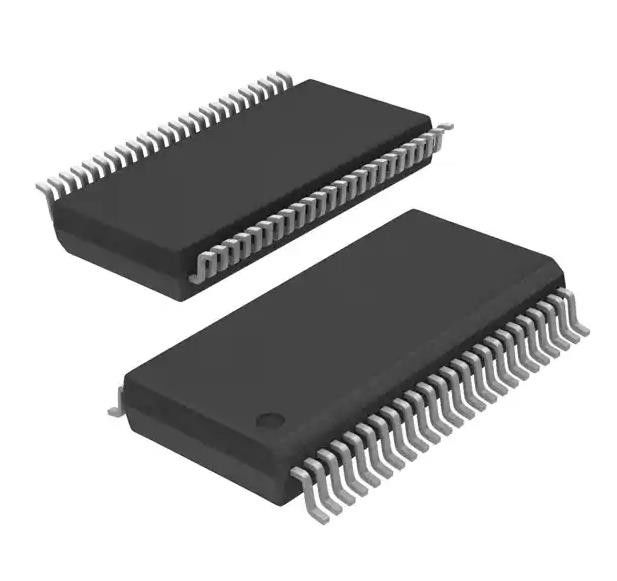

74ALVC162244PAG Buffer Integrated Circuit Chip 3-State Output 48-TSSOP
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | 74ALVC162244PAG |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Logic Type: | Buffer, Non-Inverting | Number Of Elements: | 4 |
|---|---|---|---|
| Number Of Bits Per Element: | 4 | Output Type: | 3-State |
| Current - Output High, Low: | 24mA, 24mA | Voltage - Supply: | 2.7V ~ 3.6V |
| Operating Temperature: | -40°C ~ 85°C (TA) | Mounting Type: | Surface Mount |
| High Light: | 74ALVC162244PAG,74ALVC162244PAG Integrated Circuit Chip,Buffer Integrated Circuit Chip |
||
Product Description
74ALVC162244PAG Buffer 4 Element 4 Bit per Element 3-State Output 48-TSSOP
Specifications of 74ALVC162244PAG
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Buffers, Drivers, Receivers, Transceivers | |
| Mfr | Renesas Electronics America Inc |
| Series | 74ALVC |
| Package | Tube |
| Product Status | Last Time Buy |
| Logic Type | Buffer, Non-Inverting |
| Number of Elements | 4 |
| Number of Bits per Element | 4 |
| Input Type | - |
| Output Type | 3-State |
| Current - Output High, Low | 24mA, 24mA |
| Voltage - Supply | 2.7V ~ 3.6V |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 48-TFSOP (0.240", 6.10mm Width) |
| Supplier Device Package | 48-TSSOP |
| Base Product Number | 74ALVC162244 |
Features of 74ALVC162244PAG
• 0.5 MICRON CMOS Technology
• Typical tSK(o) (Output Skew) < 250ps
• ESD > 2000V per MIL-STD-883, Method 3015; > 200V using machine model (C = 200pF, R = 0)
• VCC = 3.3V ± 0.3V, Normal Range
• VCC = 2.7V to 3.6V, Extended Range
• VCC = 2.5V ± 0.2V
• CMOS power levels (0.4μ W typ. static)
• Rail-to-Rail output swing for increased noise margin
• Available in TSSOP package
Applications of 74ALVC162244PAG
• 3.3V high speed systems
• 3.3V and lower voltage computing systems
Environmental & Export Classifications of 74ALVC162244PAG
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8504.31.2000 |
