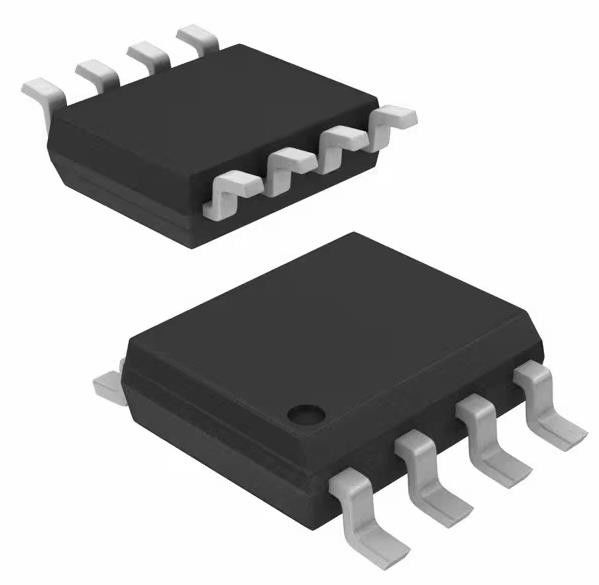

APX358SG-13 General Purpose Amplifier 2 Circuit Rail-to-Rail 8-SOP
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | APX358SG-13 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Number Of Circuits: | 2 | Output Type: | Rail-to-Rail |
|---|---|---|---|
| Slew Rate: | 1V/µs | Gain Bandwidth Product: | 1 MHz |
| Current - Input Bias: | 10 NA | Voltage - Input Offset: | 1.7 MV |
| Current - Supply: | 190µA (x2 Channels) | Current - Output / Channel: | 90 MA |
Product Description
APX358SG-13 General Purpose Amplifier 2 Circuit Rail-to-Rail 8-SOP
Specifications of APX358SG-13
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Linear | |
| Amplifiers | |
| Instrumentation, OP Amps, Buffer Amps | |
| Mfr | Diodes Incorporated |
| Series | - |
| Package | Tape & Reel (TR) |
| Amplifier Type | General Purpose |
| Number of Circuits | 2 |
| Output Type | Rail-to-Rail |
| Slew Rate | 1V/µs |
| Gain Bandwidth Product | 1 MHz |
| Current - Input Bias | 10 nA |
| Voltage - Input Offset | 1.7 mV |
| Current - Supply | 190µA (x2 Channels) |
| Current - Output / Channel | 90 mA |
| Voltage - Supply Span (Min) | 2.5 V |
| Voltage - Supply Span (Max) | 5.5 V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOP |
| Base Product Number | APX358 |
Features of APX358SG-13
(For V+ =5V and V- =0V typical unless otherwise noted)
• Guaranteed 2.7V and 5V performance
• Crossover distortion eliminated
• Operating temperature range (-40°C to +85°C)
• Gain-bandwidth 1 MHz
• Low supply current
• APX321 110 µA Typ
• APX358 190 µA Typ
• APX324 340 µA Typ
• Rail-to-rail output swing @ 10 kΩ
• V+ -10 mV
• V- +10 mV
• Input Common Mode Voltage Range (0 to V+ -0.2V)
• Manufactured in standard CMOS process
• SOT353, SOT25, MSOP-8L, SOP-8L and TSSOP-14L: Available in “Green” Molding Compound (No Br, Sb)
• Lead-free Finish / RoHS Compliant (Note 4)
Applications of APX358SG-13
• Active filters
• General purpose low voltage applications
• General purpose portable devices
Environmental & Export Classifications of APX358SG-13
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.33.0001 |
