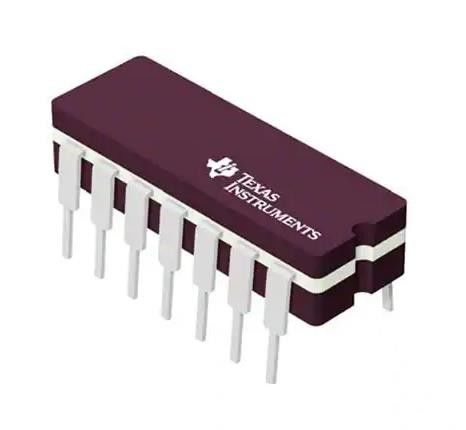

SN74S32N OR Gate Integrated Circuit Chip IC 4 Channel 14-PDIP
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | SN74S32N |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Series: | 74S | Package: | Tube |
|---|---|---|---|
| Tube: | OR Gate | Number Of Circuits: | 4 |
| Number Of Inputs: | 2 | Voltage - Supply: | 4.75V ~ 5.25V |
| Current - Output High, Low: | 1mA, 20mA | Input Logic Level - Low: | 0.8V |
Product Description
SN74S32N OR Gate Integrated Circuit Chip IC 4 Channel 14-PDIP
Specifications of SN74S32N
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Gates and Inverters | |
| Mfr | Texas Instruments |
| Series | 74S |
| Package | Tube |
| Logic Type | OR Gate |
| Number of Circuits | 4 |
| Number of Inputs | 2 |
| Features | - |
| Voltage - Supply | 4.75V ~ 5.25V |
| Current - Output High, Low | 1mA, 20mA |
| Input Logic Level - Low | 0.8V |
| Input Logic Level - High | 2V |
| Max Propagation Delay @ V, Max CL | 5ns @ 5V, 50pF |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Through Hole |
| Supplier Device Package | 14-PDIP |
| Package / Case | 14-DIP (0.300", 7.62mm) |
| Base Product Number | 74S32 |
Features of SN74S32N
* Package Options Include Plastic "SmallOutline'”Packages, Ceramic Chip Carriersand Flat Packages, and Plastic anri CeramicDIPs
* Dependable Texas instruments Quality andReliability
Applications of SN74S32N
2F = Device Code
M = Date Code*
* Date Code orientation and/or overbar may
vary depending upon manufacturing location.
Environmental & Export Classifications of SN74S32N
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
