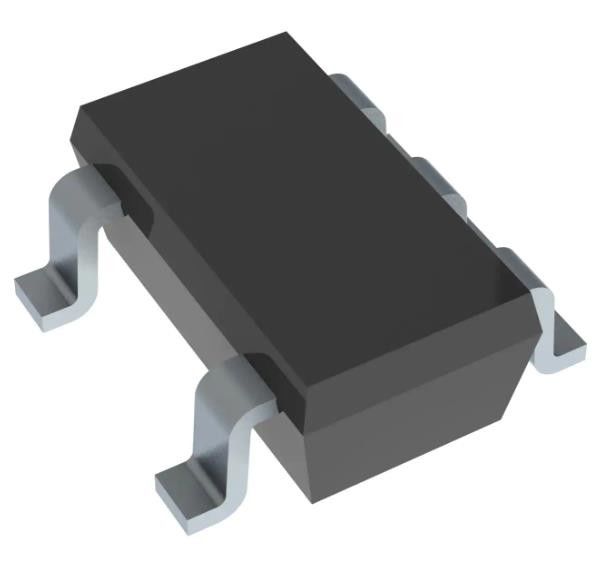

SN74LV1T125DBVR Non-Inverting 1 Element 1 Bit per Element 3-State Output SOT-23-5
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | SN74LV1T125DBVR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Logic Type: | Buffer, Non-Inverting | Number Of Elements: | 1 |
|---|---|---|---|
| Number Of Bits Per Element: | 1 | Output Type: | 3-State |
| Current - Output High, Low: | 8mA, 8mA | Voltage - Supply: | 1.6V ~ 5.5V |
| Operating Temperature: | -40°C ~ 125°C (TA) | Package / Case: | SC-74A, SOT-753 |
Product Description
SN74LV1T125DBVR Non-Inverting 1 Element 1 Bit per Element 3-State Output SOT-23-5
Specifications of SN74LV1T125DBVR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Buffers, Drivers, Receivers, Transceivers | |
| Mfr | Texas Instruments |
| Series | 74LV |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Logic Type | Buffer, Non-Inverting |
| Number of Elements | 1 |
| Number of Bits per Element | 1 |
| Input Type | - |
| Output Type | 3-State |
| Current - Output High, Low | 8mA, 8mA |
| Voltage - Supply | 1.6V ~ 5.5V |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | SC-74A, SOT-753 |
| Supplier Device Package | SOT-23-5 |
| Base Product Number | 74LV1T125 |
Features of SN74LV1T125DBVR
• Single-supply voltage translator at 5-V, 3.3-V, 2.5-V, and 1.8-V VCC
• Operating range of 1.8 V to 5.5 V
• Up translation:
– 1.2 V(1) to 1.8 V at 1.8-V VCC
– 1.5 V(1) to 2.5 V at 2.5-V VCC
– 1.8 V(1) to 3.3 V at 3.3-V VCC
– 3.3 V to 5.0 V at 5.0-V VCC
• Down translation:
– 3.3 V to 1.8 V at 1.8-V VCC
– 3.3 V to 2.5 V at 2.5-V VCC
– 5.0 V to 3.3 V at 3.3-V VCC
• Logic output is referenced to VCC
• Output drive:
– 8.0 mA output drive at 5 V
– 7.0 mA output drive at 3.3 V
– 3.0 mA output drive at 1.8 V
• Characterized up to 50 MHz at 3.3-V VCC
• 5.0 V Tolerance on input pins
• –40°C to 125°C operating temperature range
• Latch-Up Performance Exceeds 250 mAPer JESD 17
Applications of SN74LV1T125DBVR
• Telecom
• Portable applications
• Servers
• PC and notebooks
Environmental & Export Classifications of SN74LV1T125DBVR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
