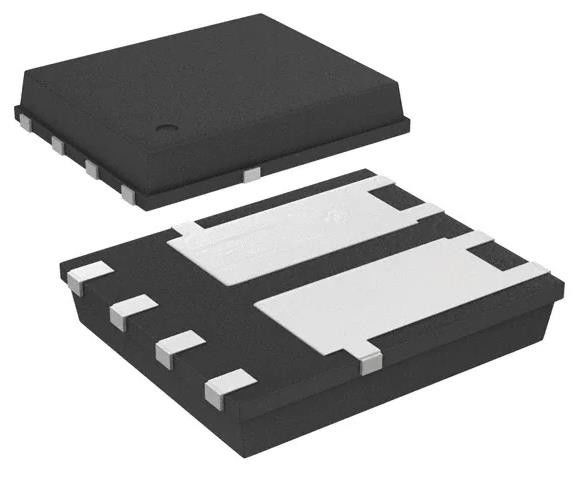

SI7938DP-T1-GE3 Mosfet Array 40V 60A 46W Surface Mount PowerPAK® SO-8 Dual
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | SI7938DP-T1-GE3 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Configuration: | 2 N-Channel (Dual) | Drain To Source Voltage (Vdss): | 40 V |
|---|---|---|---|
| Current - Continuous Drain (Id) @ 25°C: | 60A | Rds On (Max) @ Id, Vgs: | 5.8mOhm @ 18.5A, 10V |
| Vgs(th) (Max) @ Id: | 2.5V @ 250µA | Gate Charge (Qg) (Max) @ Vgs: | 65nC @ 10V |
| Input Capacitance (Ciss) (Max) @ Vds: | 2300pF @ 20V | Power - Max: | 46W |
Product Description
SI7938DP-T1-GE3 Mosfet Array 40V 60A 46W Surface Mount PowerPAK® SO-8 Dual
Specifications of SI7938DP-T1-GE3
| TYPE | DESCRIPTION |
| Category | Discrete Semiconductor Products |
| Transistors | |
| FETs, MOSFETs | |
| FET, MOSFET Arrays | |
| Mfr | Vishay Siliconix |
| Series | TrenchFET® |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Technology | MOSFET (Metal Oxide) |
| Configuration | 2 N-Channel (Dual) |
| FET Feature | - |
| Drain to Source Voltage (Vdss) | 40V |
| Current - Continuous Drain (Id) @ 25°C | 60A |
| Rds On (Max) @ Id, Vgs | 5.8mOhm @ 18.5A, 10V |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 65nC @ 10V |
| Input Capacitance (Ciss) (Max) @ Vds | 2300pF @ 20V |
| Power - Max | 46W |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | PowerPAK® SO-8 Dual |
| Supplier Device Package | PowerPAK® SO-8 Dual |
| Base Product Number | SI7938 |
Features of SI7938DP-T1-GE3
• TrenchFET® power MOSFET
• 100 % Rg and UIS tested
Applications of SI7938DP-T1-GE3
• POL
• DC/DC
Environmental & Export Classifications of SI7938DP-T1-GE3
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| ECCN | EAR99 |
| HTSUS | 8541.29.0095 |
