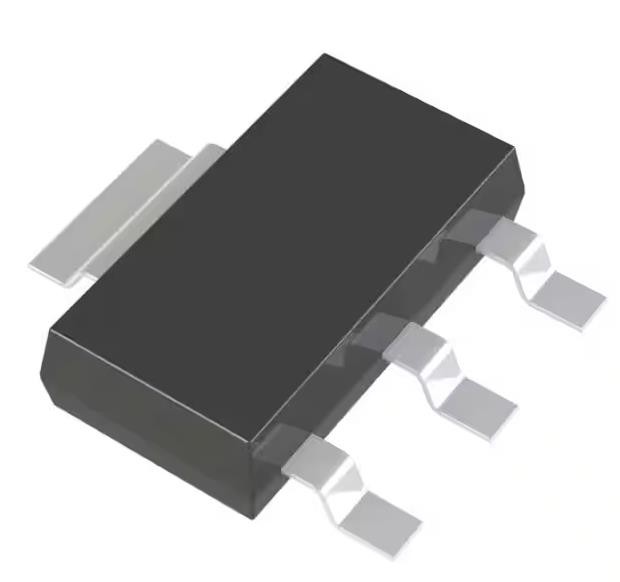

FZT851TA Bipolar (BJT) Transistor NPN 60 V 6 A 130MHz 3 W Surface Mount SOT-223-3
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | FZT851TA |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Transistor Type: | NPN | Current - Collector (Ic) (Max): | 0.25 |
|---|---|---|---|
| Voltage - Collector Emitter Breakdown (Max): | 60 V | Vce Saturation (Max) @ Ib, Ic: | 375mV @ 300mA, 6A |
| Current - Collector Cutoff (Max): | 50nA (ICBO) | DC Current Gain (hFE) (Min) @ Ic, Vce: | 100 @ 2A, 1V |
| Power - Max: | 3 W | Frequency - Transition: | 130MHz |
Product Description
FZT851TA Bipolar (BJT) Transistor NPN 60 V 6 A 130MHz 3 W Surface Mount SOT-223-3
Specifications of FZT851TA
| TYPE | DESCRIPTION |
| Category | Discrete Semiconductor Products |
| Transistors | |
| Bipolar (BJT) | |
| Single Bipolar Transistors | |
| Mfr | Diodes Incorporated |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Transistor Type | NPN |
| Current - Collector (Ic) (Max) | 0.25 |
| Voltage - Collector Emitter Breakdown (Max) | 60 V |
| Vce Saturation (Max) @ Ib, Ic | 375mV @ 300mA, 6A |
| Current - Collector Cutoff (Max) | 50nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 100 @ 2A, 1V |
| Power - Max | 3 W |
| Frequency - Transition | 130MHz |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | TO-261-4, TO-261AA |
| Supplier Device Package | SOT-223-3 |
| Base Product Number | FZT851 |
Features of FZT851TA
• BVCEO > 60V
• IC = 6A High Continuous Collector Current
• ICM = 20A Peak Pulse Current
• Low Saturation Voltage VCE(sat) < 100mV @ 1A
• RCE(sat) = 44mΩ for a Low Equivalent On-Resistance
• hFE Specified Up to 10A for a High Gain Hold Up
• Complementary PNP Type: FZT951
• Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
• Halogen and Antimony Free. “Green” Device (Note 3)
• The FZT851Q is suitable for automotive applications requiring specific change control; this part is AEC-Q101 qualified, PPAP capable, and manufactured in IATF16949 certified facilities.
Applications of FZT851TA
• Case: SOT223 Type DN
• Case Material: Molded Plastic, “Green” Molding Compound. UL Flammability Rating 94V-0
• Moisture Sensitivity: Level 1 per J-STD-020
• Terminals: Finish - Matte Tin Plated Leads. Solderable per MIL-STD-202, Method 208
• Weight: 0.112 grams (Approximate)
Environmental & Export Classifications of FZT851TA
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Affected |
| ECCN | EAR99 |
| HTSUS | 8541.29.0075 |
