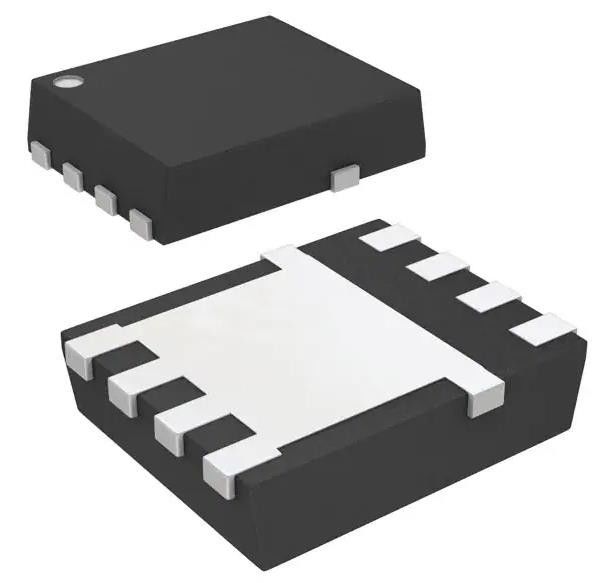

CSD16570Q5B N-Channel 25 V 100A 3.2W 195W (Tc) Surface Mount 8-VSON-CLIP (5x6)
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | CSD16570Q5B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| FET Type: | N-Channel | Technology: | MOSFET (Metal Oxide) |
|---|---|---|---|
| Drain To Source Voltage (Vdss): | 25 V | Current - Continuous Drain (Id) @ 25°C: | 100A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On): | 4.5V, 10V | Rds On (Max) @ Id, Vgs: | 0.59mOhm @ 50A, 10V |
| Vgs(th) (Max) @ Id: | 1.9V @ 250µA | 1.9V @ 250µA: | 250 NC @ 10 V |
Product Description
CSD16570Q5B N-Channel 25 V 100A 3.2W 195W (Tc) Surface Mount 8-VSON-CLIP (5x6)
Specifications of CSD16570Q5B
| TYPE | DESCRIPTION |
| Category | Discrete Semiconductor Products |
| Transistors | |
| FETs, MOSFETs | |
| Single FETs, MOSFETs | |
| Mfr | Texas Instruments |
| Series | NexFET™ |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 25 V |
| Current - Continuous Drain (Id) @ 25°C | 100A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 0.59mOhm @ 50A, 10V |
| Vgs(th) (Max) @ Id | 1.9V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 250 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 14000 pF @ 12 V |
| FET Feature | - |
| Power Dissipation (Max) | 3.2W (Ta), 195W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-VSON-CLIP (5x6) |
| Package / Case | 8-PowerTDFN |
| Base Product Number | CSD16570 |
Features of CSD16570Q5B
• Extremely Low Resistance
• Low Qg and Qgd
• Low Thermal Resistance
• Avalanche Rated
• Pb Free Terminal Plating
• RoHS Compliant
• Halogen Free
• SON 5-mm × 6-mm Plastic Package
Applications of CSD16570Q5B
• ORing and Hot Swap Applications
Environmental & Export Classifications of CSD16570Q5B
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.29.0095 |
Want to Know more details about this product
