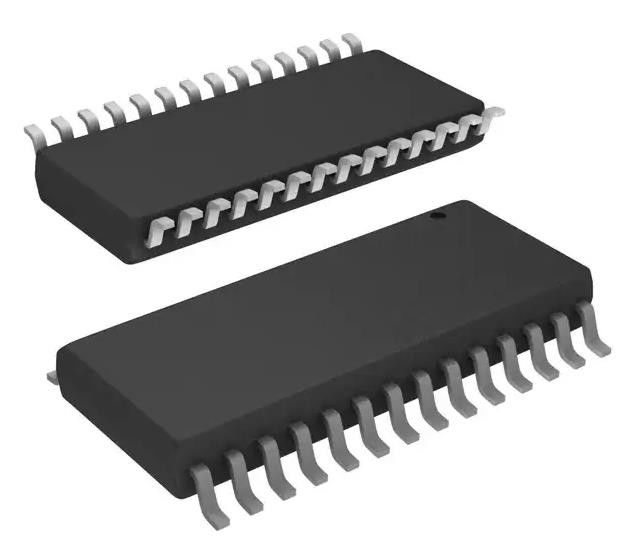

IRS2336DSTRPBF Half-Bridge Gate Driver IC Inverting 28-SOIC
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | IRS2336DSTRPBF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Driven Configuration: | Half-Bridge | Channel Type: | 3-Phase |
|---|---|---|---|
| Number Of Drivers: | 6 | Gate Type: | IGBT, N-Channel MOSFET |
| Voltage - Supply: | 10V ~ 20V | Logic Voltage - VIL, VIH: | 0.8V, 2.5V |
| Current - Peak Output (Source, Sink): | 200mA, 350mA | Input Type: | Inverting |
| High Side Voltage - Max (Bootstrap): | 600 V | Rise / Fall Time (Typ): | 125ns, 50ns |
Product Description
IRS2336DSTRPBF Half-Bridge Gate Driver IC Inverting 28-SOIC
Specifications of IRS2336DSTRPBF
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Gate Drivers | |
| Mfr | Infineon Technologies |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Digi-Key Programmable | Not Verified |
| Driven Configuration | Half-Bridge |
| Channel Type | 3-Phase |
| Number of Drivers | 6 |
| Gate Type | IGBT, N-Channel MOSFET |
| Voltage - Supply | 10V ~ 20V |
| Logic Voltage - VIL, VIH | 0.8V, 2.5V |
| Current - Peak Output (Source, Sink) | 200mA, 350mA |
| Input Type | Inverting |
| High Side Voltage - Max (Bootstrap) | 600 V |
| Rise / Fall Time (Typ) | 125ns, 50ns |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 28-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 28-SOIC |
| Base Product Number | IRS2336 |
Features of IRS2336DSTRPBF
* Drives up to six IGBT/MOSFET power devices
* Gate drive supplies up to 20 V per channel
* Integrated bootstrap functionality (IRS2336(4)D)
* Over-current protection
* Over-temperature shutdown input
* Advanced input filter
* Integrated deadtime protection
* Shoot-through (cross-conduction) protection
* Undervoltage lockout for VCC & VBS
* Enable/disable input and fault reporting
* Adjustable fault clear timing
* Separate logic and power grounds
* 3.3 V input logic compatible
* Tolerant to negative transient voltage
* Designed for use with bootstrap power supplies
* Matched propagation delays for all channels
* -40°C to 125°C operating range
* RoHS compliant
* Lead-Free
Applications of IRS2336DSTRPBF
* Appliance motor drives
* Servo drives
* Micro inverter drives
* General purpose three phase inverters
Environmental & Export Classifications of IRS2336DSTRPBF
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
