TPS65130RGER Buck-Boost Switching Regulator IC Dual Rail Adjustable 3.2V, -2V 2
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TPS65130RGER |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Output Configuration: | Positive And Negative (Dual Rail) | Output Type: | Adjustable |
|---|---|---|---|
| Number Of Outputs: | 2 | Voltage - Input (Min): | 2.7V |
| Voltage - Input (Max): | 5.5V | Voltage - Output (Min/Fixed): | 3.2V, -2V |
| Voltage - Output (Max): | 15V, -15V | Current - Output: | 700mA (Switch) |
| Frequency - Switching: | 1.38MHz | Operating Temperature: | -40°C ~ 85°C (TA) |
Product Description
TPS65130RGER Buck-Boost Switching Regulator IC Dual Rail Adjustable 3.2V, -2V 2
Specifications of TPS65130RGER
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - DC DC Switching Regulators | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Function | Step-Up, Step-Up/Step-Down |
| Output Configuration | Positive and Negative (Dual Rail) |
| Topology | Boost, Buck-Boost |
| Output Type | Adjustable |
| Number of Outputs | 2 |
| Voltage - Input (Min) | 2.7V |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 3.2V, -2V |
| Voltage - Output (Max) | 15V, -15V |
| Current - Output | 700mA (Switch) |
| Frequency - Switching | 1.38MHz |
| Synchronous Rectifier | No |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |

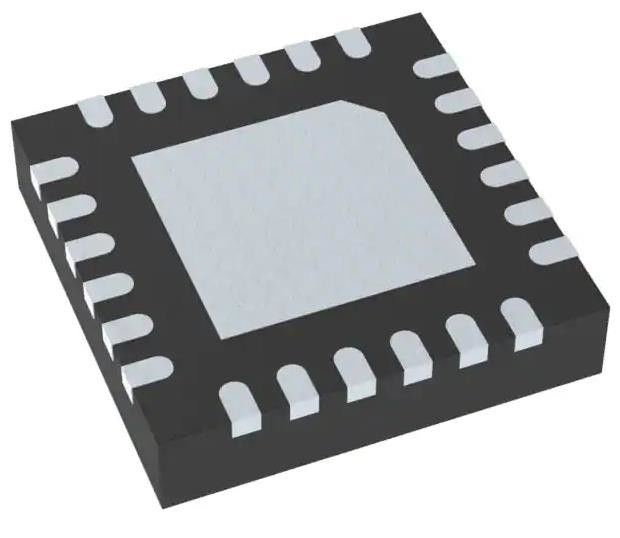

| Package / Case | 24-VFQFN Exposed Pad |
| Supplier Device Package | 24-VQFN (4x4) |
| Base Product Number | TPS65130 |
Features of TPS65130RGER
• Input voltage range: 2.7-V to 5.5-V
• VPOS positive boost converter output
– Adjustable output: up to 15 V
– Two switch current limit options: 0.8 A and 2 A
– Conversion efficiency: up to 89%
• VNEG negative inverting buck-boost converter output
– Adjustable output: down to –15 V
– Two switch current limit options: 0.8 A and 2 A
– Conversion efficiency: up to 81%
• Control output for external P-channel FET supports complete disconnection from battery
• 1-µA shutdown current
• Individual enable inputs for flexible output sequencing
• Protection features
– Overvoltage protection at VPOS and VNEG
– Input undervoltage lockout
– Thermal shutdown protection
• 4-mm × 4-mm VQFN-24 package (RGE)
Applications of TPS65130RGER
• LCD and AMOLED displays (approx. 4" to 17")
– Personal electronics (notebook, monitor, gaming)
– Building automation (elevator, thermostat)
– Healthcare, fitness, EPOS, industrial HMI, test & measurement
• General-purpose split-rail supply
– T&M, data acquisition, DACs, ADC
– Differential audio PA supply
– Factory automation and control input and output Modules
– Differential OPAMP and comparator supply
Environmental & Export Classifications of TPS65130RGER
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
