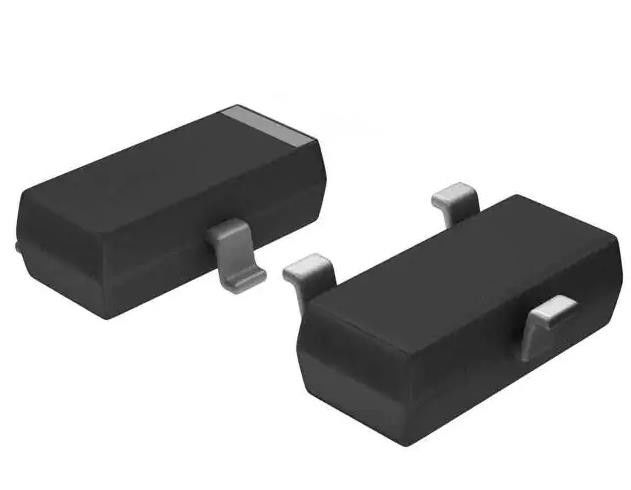

FDN335N N-Channel 20 V 1.7A (Ta) 500mW (Ta) Surface Mount SOT-23-3
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | FDN335N |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| FET Type: | N-Channel | Drain To Source Voltage (Vdss): | 20V |
|---|---|---|---|
| Current - Continuous Drain (Id) @ 25°C: | 1.7A (Ta) | Drive Voltage (Max Rds On, Min Rds On): | 2.5V, 4.5V |
| Rds On (Max) @ Id, Vgs: | 70mOhm @ 1.7A, 4.5V | Vgs(th) (Max) @ Id: | 1.5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs: | 5 NC @ 4.5 V | Vgs (Max): | ±8V |
| Input Capacitance (Ciss) (Max) @ Vds: | 310 PF @ 10 V | Power Dissipation (Max): | 500mW (Ta) |
Product Description
FDN335N N-Channel 20 V 1.7A (Ta) 500mW (Ta) Surface Mount SOT-23-3
Specifications of FDN335N
| TYPE | DESCRIPTION |
| Category | Discrete Semiconductor Products |
| Transistors | |
| FETs, MOSFETs | |
| Single FETs, MOSFETs | |
| Mfr | onsemi |
| Series | PowerTrench® |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 20 V |
| Current - Continuous Drain (Id) @ 25°C | 1.7A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 2.5V, 4.5V |
| Rds On (Max) @ Id, Vgs | 70mOhm @ 1.7A, 4.5V |
| Vgs(th) (Max) @ Id | 1.5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 5 nC @ 4.5 V |
| Vgs (Max) | ±8V |
| Input Capacitance (Ciss) (Max) @ Vds | 310 pF @ 10 V |
| FET Feature | - |
| Power Dissipation (Max) | 500mW (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | SOT-23-3 |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Base Product Number | FDN335 |
Features of FDN335N
• 1.7 A, 20 V. R DS(ON) = 0.07 Ω @ V GS = 4.5 V RDS(ON) = 0.100 Ω @ V GS = 2.5 V.
• Low gate charge (3.5nC typical).
• High performance trench technology for extremely low R DS(ON)
• High power and current handling capability
Applications of FDN335N
• DC/DC converter
• Load switch
Environmental & Export Classifications of FDN335N
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.21.0095 |
