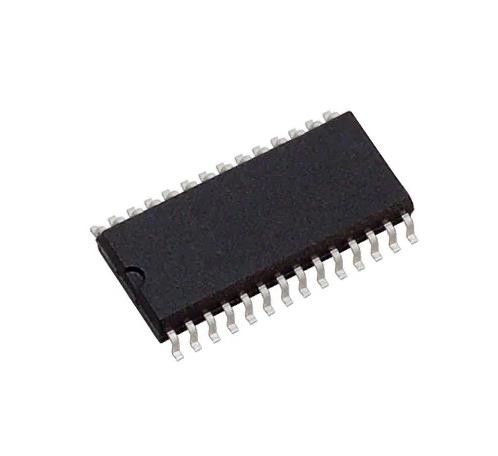

ADS7805U 16 Bit Analog to Digital Converter 1 Input 1 SAR 28-SOIC
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | ADS7805U |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Number Of Bits: | 16 | Sampling Rate (Per Second): | 100k |
|---|---|---|---|
| Number Of Inputs: | 1 | Input Type: | Single Ended |
| Data Interface: | Parallel | Configuration: | S/H-ADC |
| Ratio - S/H:ADC: | 1:01 | Number Of A/D Converters: | 1 |
Product Description
ADS7805U 16 Bit Analog to Digital Converter 1 Input 1 SAR 28-SOIC
Specifications of ADS7805U
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Data Acquisition | |
| Analog to Digital Converters (ADC) | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tube |
| Number of Bits | 16 |
| Sampling Rate (Per Second) | 100k |
| Number of Inputs | 1 |
| Input Type | Single Ended |
| Data Interface | Parallel |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:01 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Features | - |
| Operating Temperature | -25°C ~ 85°C |
| Package / Case | 28-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 28-SOIC |
| Mounting Type | Surface Mount |
| Base Product Number | ADS7805 |
Features of ADS7805U
● 100kHz min SAMPLING RATE
● STANDARD ±10V INPUT RANGE
● 86dB min SINAD WITH 20kHz INPUT
● ±3.0 LSB max INL
● DNL: 16 Bits “No Missing Codes”
● SINGLE +5V SUPPLY OPERATION
● PIN-COMPATIBLE WITH 12-BIT ADS7804
● USES INTERNAL OR EXTERNAL REFERENCE
● FULL PARALLEL DATA OUTPUT
● 100mW max POWER DISSIPATION
● 0.3" DIP-28 AND SO-28
Applications of ADS7805U
The ADS7805 is a complete 16-bit sampling, Analog-toDigital (A/D) converter using state-of-the-art CMOS structures. It contains a complete 16-bit, capacitor-based, Successive Approximation Register (SAR) A/D converter with Sample-and-Hold (S/H), reference, clock, interface for microprocessor use, and 3-state output drivers.
Environmental & Export Classifications of ADS7805U
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
