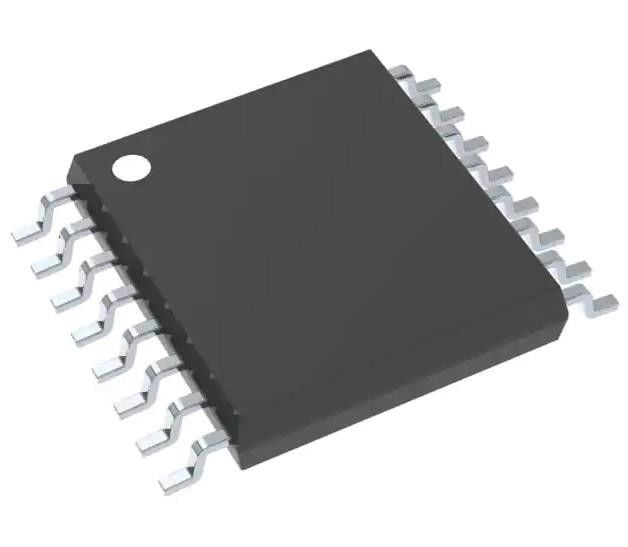

ADS7280IPW 14 Bit Analog to Digital Converter 2 Input 1 SAR 16-TSSOP
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | ADS7280IPW |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Number Of Bits: | 14 | Sampling Rate (Per Second): | 1M |
|---|---|---|---|
| Number Of Inputs: | 2 | Input Type: | Pseudo-Differential, Single Ended |
| Data Interface: | SPI, DSP | Configuration: | MUX-S/H-ADC |
| Ratio - S/H:ADC: | 1:01 | Number Of A/D Converters: | 1 |
Product Description
ADS7280IPW 14 Bit Analog to Digital Converter 2 Input 1 SAR 16-TSSOP
Specifications of ADS7280IPW
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Data Acquisition | |
| Analog to Digital Converters (ADC) | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tube |
| Product Status | Active |
| Number of Bits | 14 |
| Sampling Rate (Per Second) | 1M |
| Number of Inputs | 2 |
| Input Type | Pseudo-Differential, Single Ended |
| Data Interface | SPI, DSP |
| Configuration | MUX-S/H-ADC |
| Ratio - S/H:ADC | 1:01 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 1.65V ~ 5.5V |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 16-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 16-TSSOP |
| Mounting Type | Surface Mount |
| Base Product Number | ADS7280 |
Features of ADS7280IPW
* 2.7V to 5.5V Analog Supply, Low Power:
- 13.7mW (1MHz, +VA = 3V, +VBD = 1.8V)
* 1MHz Sampling Rate 3V s +VA S 5.5V,900kHz Sampling Rate 2.7V S +VA S 3V
* Excellent DC Performance:
- +0.4LSB Typ,土1.0LSB Max INL
- +0.4LSB Typ,土1.0LSB Max DNL
- +0.8mV Max Offset Error at 3Vl
- +1.25mV Max Offset Error at 5V
* Excellent AC Performance at f = 10kHz with85.9dB SNR,105.3dB SFDR,-100.1dB THD
* Built-In Conversion Clock (CCLK)
* 1.65V to 5.5V IO Supply:
- SPITM/DSP-Compatible Serial Interface
- SCLK up to 50MHz
* Comprehensive Power-Down Modes:
- Deep Power-Down
- Nap PowerDown
- Auto Nap Power-Down
* Unipolar Input Range: 0V to VREF
* Software Reset
* Global CONVST (Independent of CS
* Programmable Status/Polarity EOC/INT
* 4 * 4 QFN-16 and TSSOP-16 Packages
* Multi-Chip Daisy-Chain Mode
* Programmable TAG Bit Output
* Auto/Manual Channel Select Mode (ADS7280)
Applications of ADS7280IPW
* Communications
* Transducer Interface
* Medical Instruments
* Magnetometers
* Industrial Process Control
* Data Acquisition Systems
* Automatic Test Equipment
Environmental & Export Classifications of ADS7280IPW
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
