VND5E025AYTR-E Power Switch Driver 1/1 N Channel 33A Power SSO-36
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | VND5E025AYTR-E |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Switch Type: | General Purpose | Number Of Outputs: | 1 |
|---|---|---|---|
| Ratio - Input:Output: | 0.042361111 | Output Type: | N-Channel |
| Interface: | On/Off | Voltage - Load: | 4.5V ~ 28V |
| Rds On (Typ): | 25mOhm | Current - Output (Max): | 33A |
| High Light: | VND5E025AYTR-E Integrated Circuit Chip,SSO-36 Integrated Circuit Chip |
||
Product Description

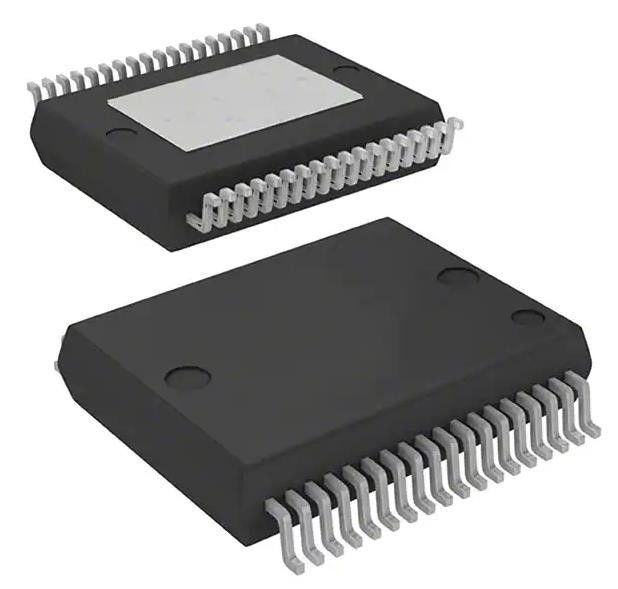

VND5E025AYTR-E Power Switch/Driver 1:1 N-Channel 33A PowerSSO-36
Specifications of VND5E025AYTR-E
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Power Distribution Switches, Load Drivers | |
| Mfr | STMicroelectronics |
| Series | Automotive, AEC-Q100, VIPOWER™ |
| Package | Tape & Reel (TR) |
| Switch Type | General Purpose |
| Number of Outputs | 2 |
| Ratio - Input:Output | 0.042361111 |
| Output Configuration | High Side |
| Output Type | N-Channel |
| Interface | On/Off |
| Voltage - Load | 4.5V ~ 28V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 33A |
| Rds On (Typ) | 25mOhm |
| Input Type | Non-Inverting |
| Features | Auto Restart |
| Fault Protection | Current Limiting (Fixed), Over Temperature, Over Voltage |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | PowerSSO-36 |
| Package / Case | 36-PowerFSOP (0.295", 7.50mm Width) |
| Base Product Number | VND5E025 |
Features of VND5E025AYTR-E
■ General
– Very low standby current
– 3 V CMOS compatible inputs
– Optimized electromagnetic emissions
– Very low electromagnetic susceptibility
– Compliance with European directive 2002/95/EC
– Very low current sense leakage
■ Diagnostic functions
– Proportional load current sense
– OFF-state open-load detection
– Current sense disable
– Thermal shutdown indication
– Output short to VCC detection
– Over load and short to ground (power limitation) indication
■ Protection
– Undervoltage shutdown
– Over voltage clamp
– Load current limitation
– Self limiting of fast thermal transients
– Protection against loss of ground and loss of VCC
– Over temperature shutdown with autorestart (thermal shutdown)
– Reverse battery protection with self switch on of the Power MOSFET
– Electrostatic discharge protection
Applications of VND5E025AYTR-E
■ All types of resistive, inductive and capacitiveloads
Environmental & Export Classifications of VND5E025AYTR-E
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
