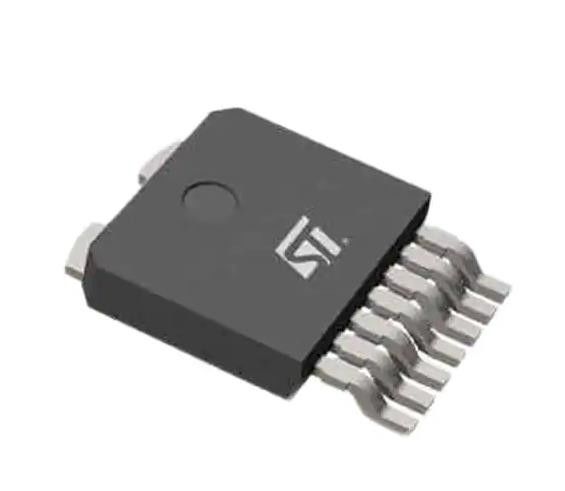

VN7004CHTR Integrated Circuit Chip 80A OctaPAK 7+1
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | VN7004CHTR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Switch Type: | General Purpose | Number Of Outputs: | 1 |
|---|---|---|---|
| Ratio - Input:Output: | 0.042361111 | Output Configuration: | High Side |
| Output Type: | N-Channel | Interface: | On/Off |
| Voltage - Load: | 4V ~ 28V | Voltage - Supply (Vcc/Vdd): | Not Required |
| High Light: | VN7004CHTR Integrated Circuit Chip,80A Integrated Circuit Chip |
||
Product Description
VN7004CHTR Power Switch/Driver 1:1 N-Channel 80A OctaPAK 7+1
Specifications of VN7004CHTR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Power Distribution Switches, Load Drivers | |
| Mfr | STMicroelectronics |
| Series | Automotive, AEC-Q100 |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Switch Type | General Purpose |
| Number of Outputs | 1 |
| Ratio - Input:Output | 0.042361111 |
| Output Configuration | High Side |
| Output Type | N-Channel |
| Interface | On/Off |
| Voltage - Load | 4V ~ 28V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 80A |
| Rds On (Typ) | 4mOhm |
| Input Type | Non-Inverting |
| Features | - |
| Fault Protection | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage, UVLO |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | OctaPAK 7+1 |
| Package / Case | OctaPAK (7 leads + Tab) |
| Base Product Number | VN7004 |
Features of VN7004CHTR
* AEC-Q100 qualified
* General
- Single channel smart high-side driver with CurrentSense analog feedback
- Very low standby current
- Compatible with 3.0 V and 5 V CMOS outputs
* Diagnostic functions
- Overload and short to ground (power limitation) indication
- Thermal shutdown indication
- OFF-state open-load detection
- Output short to VCC detection
- Sense enable/ disable
* Protections
- Undervoltage shutdown
- Overvoltage clamp
- Load current limitation
Applications of VN7004CHTR
Specially intended for Automotive smart power distribution, glow plugs, heating systems, DC motors, relay replacement and high power resistive and inductive actuators.
Environmental & Export Classifications of VN7004CHTR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
