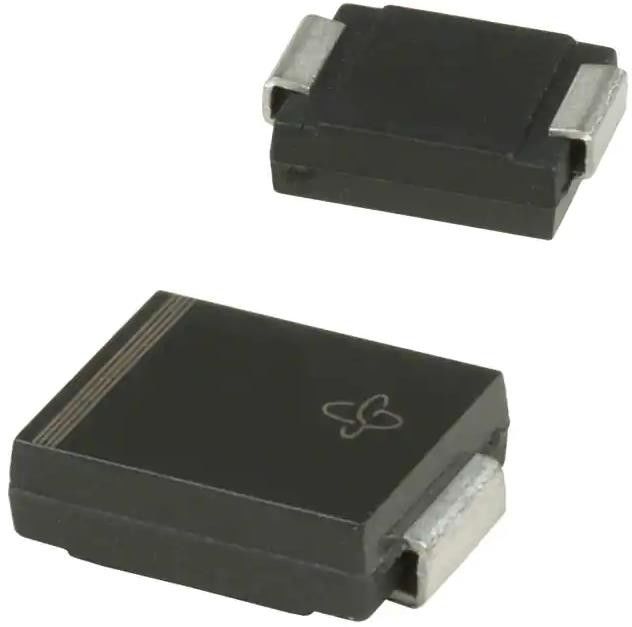

TPSMC36AHE3 / 9AT 49.9V Clamp 30.1A Ipp Tvs Diode Surface Mount DO-214AB (SMCJ)
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TPSMC36AHE3/9AT |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Type: | Zener | Unidirectional Channels: | 1 |
|---|---|---|---|
| Voltage - Reverse Standoff (Typ): | 30.8V | Voltage - Breakdown (Min): | 34.2V |
| Voltage - Clamping (Max) @ Ipp: | 49.9V | Current - Peak Pulse (10/1000µs): | 30.1A |
| Power - Peak Pulse: | 1500W (1.5kW) | Applications: | Automotive |
| High Light: | TPSMC36AHE3 / 9AT Integrated Circuit Chip,Surface Mount Integrated Circuit Chip |
||
Product Description
TPSMC36AHE3 / 9AT 49.9V Clamp 30.1A Ipp Tvs Diode Surface Mount DO-214AB (SMCJ)
Specifications of TPSMC36AHE3/9AT
| TYPE | DESCRIPTION |
| Category | Circuit Protection |
| Transient Voltage Suppressors (TVS) | |
| TVS Diodes | |
| Mfr | Vishay General Semiconductor - Diodes Division |
| Series | Automotive, AEC-Q101, PAR® |
| Package | Tape & Reel (TR) |
| Type | Zener |
| Unidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 30.8V |
| Voltage - Breakdown (Min) | 34.2V |
| Voltage - Clamping (Max) @ Ipp | 49.9V |
| Current - Peak Pulse (10/1000µs) | 30.1A |
| Power - Peak Pulse | 1500W (1.5kW) |
| Power Line Protection | No |
| Applications | Automotive |
| Capacitance @ Frequency | - |
| Operating Temperature | -65°C ~ 185°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AB, SMC |
| Supplier Device Package | DO-214AB (SMCJ) |
| Base Product Number | TPSMC36 |
Features of TPSMC36AHE3/9AT
• Junction passivation optimized design passivated anisotropic rectifier technology
• TJ = 185 °C capability suitable for high reliability and automotive requirement
• Available in unidirectional polarity only
• 1500 W peak pulse power capability with a 10/1000 μs waveform
• Excellent clamping capability
• Very fast response time
• Low incremental surge resistance
• Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C
• AEC-Q101 qualified available
- Automotive ordering code: base P/NHE3 or P/NHM3
Applications of TPSMC36AHE3/9AT
* Case: SMC (DO-214AB)
* Molding compound meets UL 94 V-0 flammability rating
* Base P/NHE3_X - RoHS-compliant and AEC-Q101 qualified
* Base P/NHM3_X - halogen-free, RoHS-compliant, and AEC-Q101 qualified (“_X” denotes revision code e.g. A, B, ...)
* Terminals: matte tin plated leads, solderable per J-STD-002 and JESD 22-B102 HE3 and HM3 suffix meets JESD 201 class 2 whisker test
* Polarity: color band denotes cathode end
Environmental & Export Classifications of TPSMC36AHE3/9AT
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.10.0080 |
