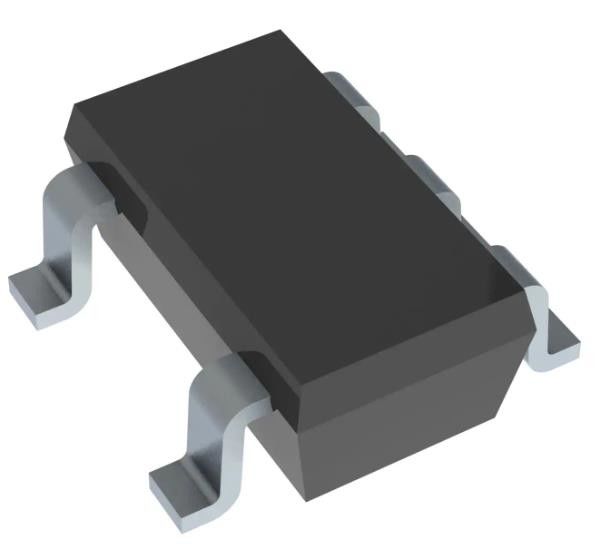

TPS3820-33DBVR Surface Mount IC Supervisor Push Pull Totem Pole 1 Channel SOT-23-5
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TPS3820-33DBVR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Type: | Simple Reset/Power-On Reset | Number Of Voltages Monitored: | 1 |
|---|---|---|---|
| Voltage - Threshold: | 2.93V | Output: | Push-Pull, Totem Pole |
| Reset: | Active Low | Reset Timeout: | 15ms Minimum |
| Operating Temperature: | -40°C ~ 85°C (TA) | Mounting Type: | Surface Mount |
| High Light: | TPS3820-33DBVR Surface Mount IC,SOT-23-5 Surface Mount IC |
||
Product Description
TPS3820-33DBVR Supervisor Push-Pull, Totem Pole 1 Channel SOT-23-5
Specifications of TPS3820-33DBVR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Supervisors | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Type | Simple Reset/Power-On Reset |
| Number of Voltages Monitored | 1 |
| Voltage - Threshold | 2.93V |
| Output | Push-Pull, Totem Pole |
| Reset | Active Low |
| Reset Timeout | 15ms Minimum |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | SC-74A, SOT-753 |
| Supplier Device Package | SOT-23-5 |
| Base Product Number | TPS3820 |
Features of TPS3820-33DBVR
• Power-on reset generator with a fixed delay time of 200 ms (TPS3823, TPS3824, TPS3825, and TPS3828) or 25 ms (TPS3820)
• Manual reset input (TPS3820, TPS3823, TPS3825, and TPS3828)
• Reset output available in active-low (TPS3820, TPS3823, TPS3824, and TPS3825), active-high (TPS3824 and TPS3825), and open drain (TPS3828)
• Supply voltage supervision range: 2.5 V, 3 V, 3.3 V, 5 V
• Watchdog timer (TPS3820, TPS3823, TPS3824, and TPS3828)
• Supply current of 15 μA (typical)
• 5-pin SOT-23 package
• Temperature range: −40°C to 85°C (−40°C to 125°C for TPS3823A-33)
Applications of TPS3820-33DBVR
• DSPs, microcontrollers, or microprocessors
• Industrial equipment
• Programmable controls
• Automotive systems
• Portable and battery-powered equipment
• Intelligent instruments
• Wireless communications systems
• Notebook and desktop computers
Environmental & Export Classifications of TPS3820-33DBVR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
