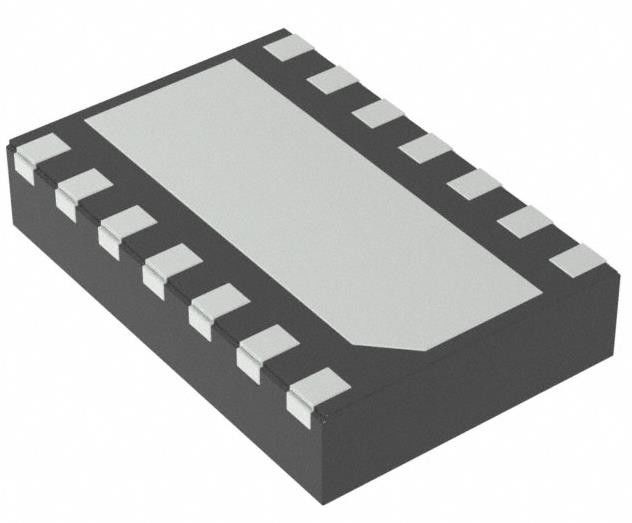

TLIN1022DMTRQ1 Integrated Circuit Chip 2/2 Transceiver LIN 14-VSON (4.5x3)
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TLIN1022DMTRQ1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Type: | Transceiver | Protocol: | LIN |
|---|---|---|---|
| Number Of Drivers/Receivers: | 2/2 | Receiver Hysteresis: | 50 MV |
| Data Rate: | 20kbps | Voltage - Supply: | 4V ~ 36V |
| Operating Temperature: | -40°C ~ 125°C (TA) | Mounting Type: | Surface Mount, Wettable Flank |
| High Light: | TLIN1022DMTRQ1 integrated circuit chip,Transceiver integrated circuit chip |
||
Product Description
Specifications of TLIN1022DMTRQ1
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Interface | |
| Drivers, Receivers, Transceivers | |
| Mfr | Texas Instruments |
| Series | Automotive, AEC-Q100 |
| Package | Tape & Reel (TR) |
| Type | Transceiver |
| Protocol | LIN |
| Number of Drivers/Receivers | 2/2 |
| Duplex | - |
| Receiver Hysteresis | 50 mV |
| Data Rate | 20kbps |
| Voltage - Supply | 4V ~ 36V |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount, Wettable Flank |
| Package / Case | 14-VDFN Exposed Pad |
| Supplier Device Package | 14-VSON (4.5x3) |
| Base Product Number | TLIN1022 |
Features of TLIN1022DMTRQ1
• AEC-Q100 Qualified for automotive applications
– Temperature: –40°C to 125°C ambient
– HBM certification level: ±8 kV
– CDM certification level: ±1.5 kV
• Compliant to LIN 2.0, LIN 2.1, LIN 2.2, LIN 2.2 A and ISO/DIS 17987–4.2 (See SLLA491)
• Conforms to SAEJ2602 recommended practice for LIN (See SLLA491)
• Supports 12 V battery applications
• LIN transmit data rate up to 20 kbps.
• Wide operating ranges
– 4 V to 36 V supply voltage
– ±45 V LIN bus fault protection
• Sleep mode: ultra-low current consumption allows wake-up event from:
– LIN bus
– Local wake up through EN
• Power up and down glitch free operation
• Protection features:
– Under voltage protection on VSUP
– TXD Dominant time out protection (DTO)
– Thermal shutdown protection
– Unpowered node or ground disconnection failsafe at system level.
• Available in SOIC (14) package and leadless VSON (14) Package with improved automated optical inspection (AOI) capability
Applications of TLIN1022DMTRQ1
• Body electronics and Lighting
• Hybrid electric vehicles and power train systems
• Infotainment and cluster
• Appliances
Environmental & Export Classifications of TLIN1022DMTRQ1
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
